WINDSHIELD WIPER AND WASHER SWITCH INSPECTION

id091900800300

1.  Disconnect the negative battery cable.

2.  Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION.)

3.  Remove the wiper and washer switch. (See WIPER AND WASHER SWITCH REMOVAL/INSTALLATION.)

4.  Verify that the resistance and continuity between the windshield wiper and washer switch terminals as indicated in the table.

•  If the continuity is not as indicated in the table, or if the resistance is not within the specification, replace the windshield wiper and washer switch.

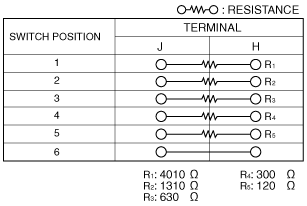

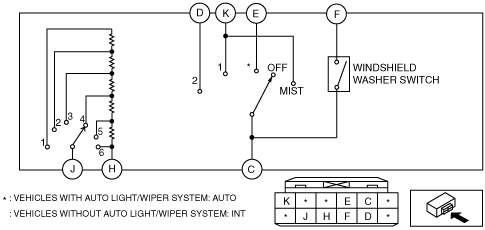

Vehicles With Wiper and Washer Switch on Left Side

am6zzw00004690

am6zzw00003553

am6zzw00003554

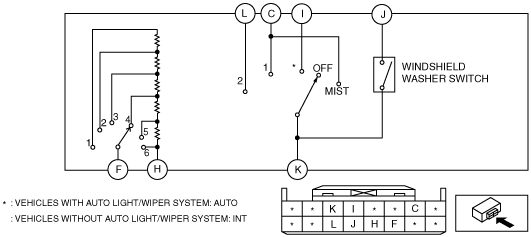

Vehicles With Wiper and Washer Switch on Right Side

am6zzw00004691

am2zzw00000384

am2zzw00000385
