REAR WIPER ARM AND BLADE ADJUSTMENT


id091900801300


5HB

1.  Turn off the rear wiper switch while operating the rear wiper motor, and then stop the rear wiper at the auto-stop position.

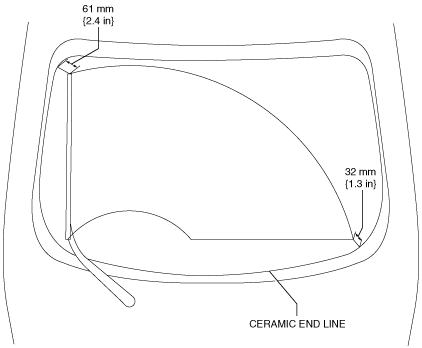

2.  Set the rear wiper arm onto the ceramic end line.

am6zzw00002687


Wagon

1.  Turn off the rear wiper switch while operating the rear wiper motor, and then stop the rear wiper at the auto-stop position.

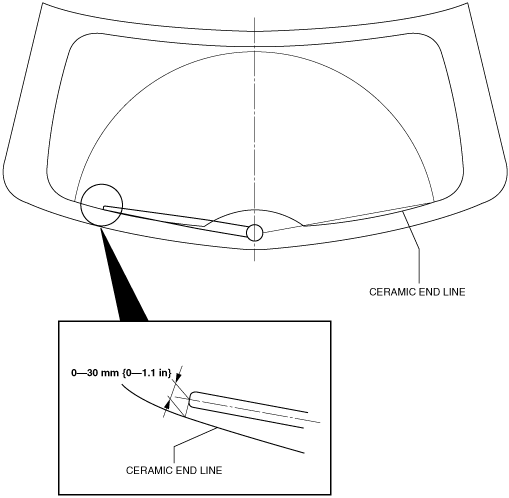

2.  Set the rear wiper arm onto the ceramic end line.

am6zzw00004689
