REAR WIPER MOTOR REMOVAL/INSTALLATION

id091900801400

5HB

1.  Disconnect the negative battery cable.

2.  Remove the following parts:

(1)  Rear wiper arm and blade (See REAR WIPER ARM AND BLADE REMOVAL/INSTALLATION.)

(2)  Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION.)

(3)  Liftgate side trim (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION.)

(4)  Recess (See RECESS REMOVAL/INSTALLATION.)

(5)  Liftgate lower trim (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION.)

3.  Remove in the order indicated in the table.

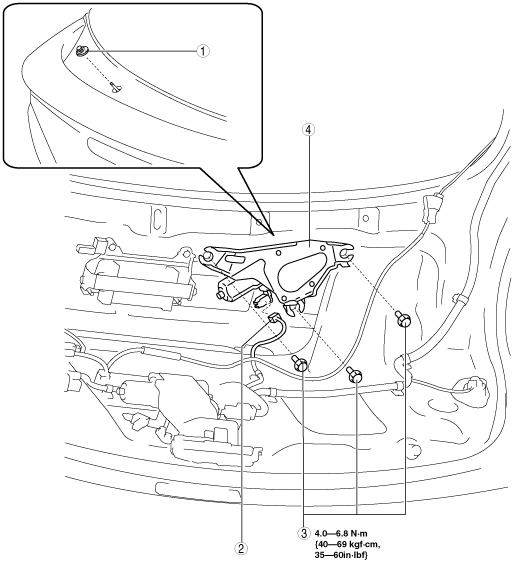

am6zzw00000364

1	Outer bush
2	Connector
3	Bolt
4	Rear wiper motor

4.  Install in the reverse order of removal.

Wagon

1.  Disconnect the negative battery cable.

2.  Remove the following parts:

(1)  Rear wiper arm and blade (See REAR WIPER ARM AND BLADE REMOVAL/INSTALLATION.)

(2)  Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION.)

(3)  Liftgate side trim (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION.)

(4)  Recess (See RECESS REMOVAL/INSTALLATION.)

(5)  Liftgate lower trim (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION.)

3.  Remove in the order indicated in the table.

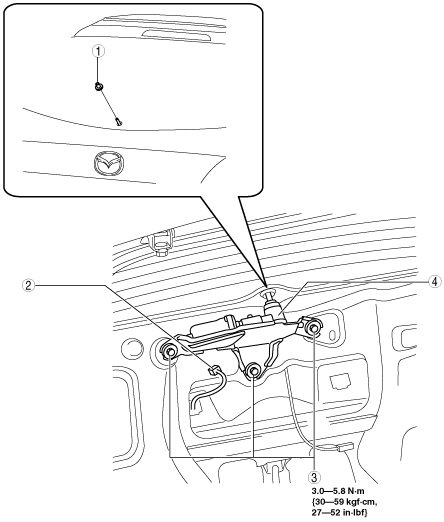

am6zzw00000366

1	Outer bush
2	Connector
3	Bolt
4	Rear wiper motor

4.  Install in the reverse order of removal.
