WASHER TANK REMOVAL/INSTALLATION
id091900801700
With Headlight Cleaner
1. Disconnect the negative battery cable.
2. Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION.)
3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.

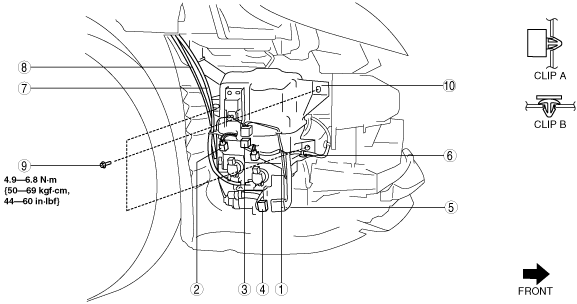

am6zzw00000373
|
|
1
|
Windshield washer motor connector
|
|
2
|
Rear washer motor connector (Vehicles with rear washer system)
|
|
3
|
Washer fluid-level sensor connector
|
|
4
|
Vehicles connector
|
|
5
|
Clip A
|
|
6
|
Clip B
|
|
7
|
Windshield washer hose
|
|
8
|
Rear washer hose (Vehicles with rear washer system)
|
|
9
|
Bolt
|
|
10
|
Washer tank
|
|
11
|
Headlight cleaner motor connector
|
Without Headlight Cleaner
1. Disconnect the negative battery cable.
2. Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION.)
3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.

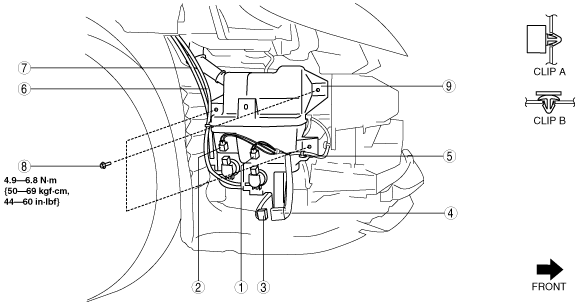

am6zzw00000374
|
|
1
|
Windshield washer motor connector
|
|
2
|
Rear washer motor connector (Vehicles with rear washer system)
|
|
3
|
Vehicles connector
|
|
4
|
Clip A
|
|
5
|
Clip B
|
|
6
|
Windshield washer hose
|
|
7
|
Rear washer hose (Vehicles with rear washer system)
|
|
8
|
Bolt
|
|
9
|
Washer tank
|
