HEADLIGHT CLEANER ACTUATOR REMOVAL/INSTALLATION

id091900803000

1. Disconnect the negative battery cable.

2. Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION.)

3. Remove the headlight cleaner in the order indicated in the table.

am6zzw00000077

1

Headlight cleaner hose

(See Headlight Cleaner Hose Removal Note.)

2

Screw

3

Headlight cleaner nozzle cover

(See Headlight Cleaner Nozzle Cover Removal Note.)

4

Headlight cleaner actuator

(See Headlight Cleaner Actuator Removal Note.)

4. Install in the reverse order of removal.

Headlight Cleaner Hose Removal Note

1. Disconnect the clip, while push in the direction of the arrow shown in the figure.

am6zzw00000074

Headlight Cleaner Nozzle Cover Removal Note

1. Pull out the headlight cleaner nozzle, remove the headlight cleaner nozzle cover in the direction of the arrow shown in the figure.

am6zzw00000075

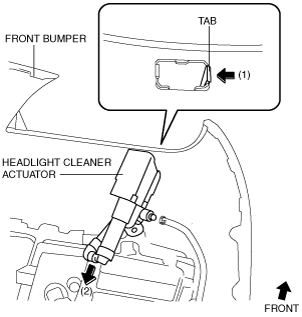

Headlight Cleaner Actuator Removal Note

1. Remove the headlight cleaner in the direction of the arrow (2) while keeping it push in the direction of the arrow (1) shown in the figure.

am6zzw00000073

1	Headlight cleaner hose (See Headlight Cleaner Hose Removal Note.)
2	Screw
3	Headlight cleaner nozzle cover (See Headlight Cleaner Nozzle Cover Removal Note.)
4	Headlight cleaner actuator (See Headlight Cleaner Actuator Removal Note.)
