HEADLIGHT CLEANER HOSE REMOVAL/INSTALLATION

id091900803100

1.  Disconnect the negative battery cable.

2.  Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION.)

3.  Disconnect the headlight cleaner hose in the direction of the arrow in the figure. (See Headlight Cleaner Hose B Removal Note)

am6zzw00002224

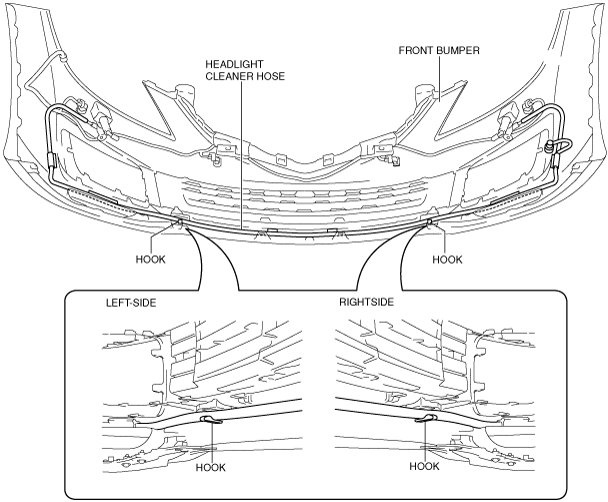

4.  Remove the headlight cleaner hose from the hooks.

am6zzw00000076

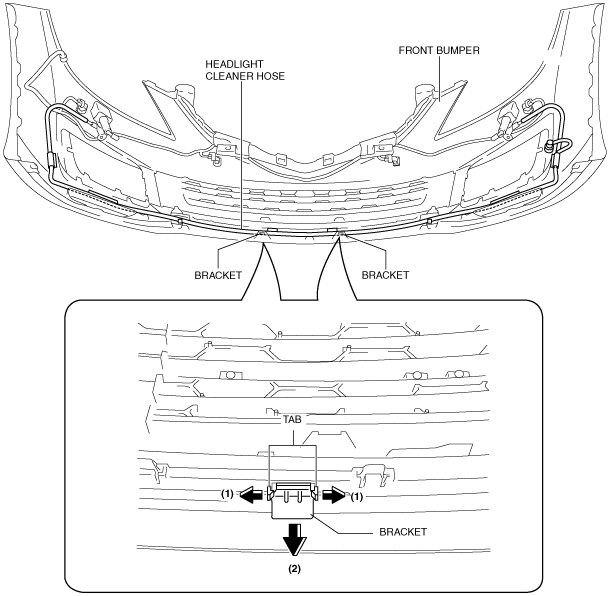

5.  Remove the bracket in the direction of the arrow (2), while keeping it pull the tabs in the direction of the arrow (1).

am6zzw00002225

6.  Remove the headlight cleaner hose.

7.  Install in the reverse order of removal.

Headlight Cleaner Hose B Removal Note

1.  Disconnect the clip, while push in the direction of the arrow shown in the figure.

am6zzw00000074
