HEADLIGHT CLEANER MOTOR REMOVAL/INSTALLATION

id091900803300

1.  Disconnect the negative battery cable.

2.  Peal the front mudguard (RH). (See FRONT MUDGUARD REMOVAL/INSTALLATION.)

3.  Remove in the order indicated in the table.

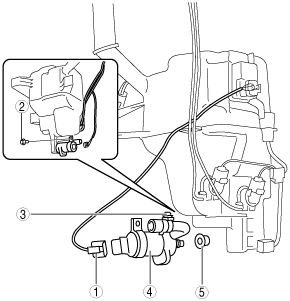

am6zzw00002238

1	Connector
2	Screw
3	Clip
4	Headlight cleaner motor
5	Grommet

4.  Install in the reverse order of removal.
