SPEAKER CONSTRUCTION
id092000107900

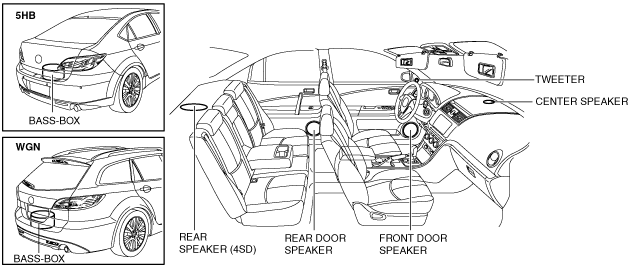

8 speaker type (With Bose®)
• The door speakers are located inside the front and rear door trims.
• The tweeter is located inside the inner garnish.
• The center speaker is located inside the center panel upper.
• The rear speaker is located inside the rear package trim. (4SD)
• The bass-box is located inside the trunk board. (5HB/WGN)

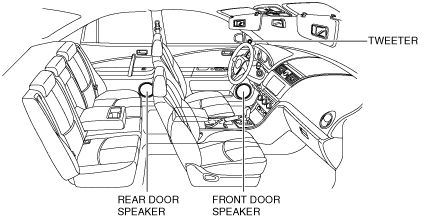

6 speaker type
• The speakers are located inside the front and rear door trims.
• The tweeter is located inside the inner garnish.

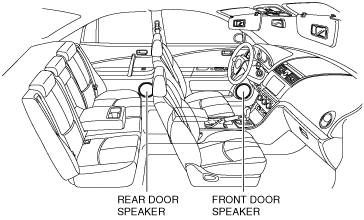

4 speaker type
• The speakers are located inside the front and rear door trims.
