AUDIO AMPLIFIER REMOVAL/INSTALLATION

id092000801100

1.  Slide the passenger seat rearward.

2.  Remove the bolt A.

am6zzw00001777

3.  Slide the passenger seat forward.

4.  Disconnect the negative battery cable.

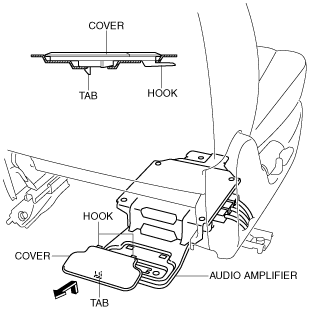

5.  Remove the cover.

am6zzw00001778

6.  Remove the bolts B.

am6zzw00001779

7.  Disconnect the connector.

8.  Remove the audio amplifier.

9.  Install in the reverse order of removal.
