STEERING SWITCH REMOVAL/INSTALLATION
id092000822300
1. Switch the ignition to off.
2. Disconnect the negative battery cable and wait for 1 min or more.
3. Remove the driver-side air bag module. (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)
4. Remove the steering wheel. (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [WITHOUT ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM].)(See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [WITH ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM].)

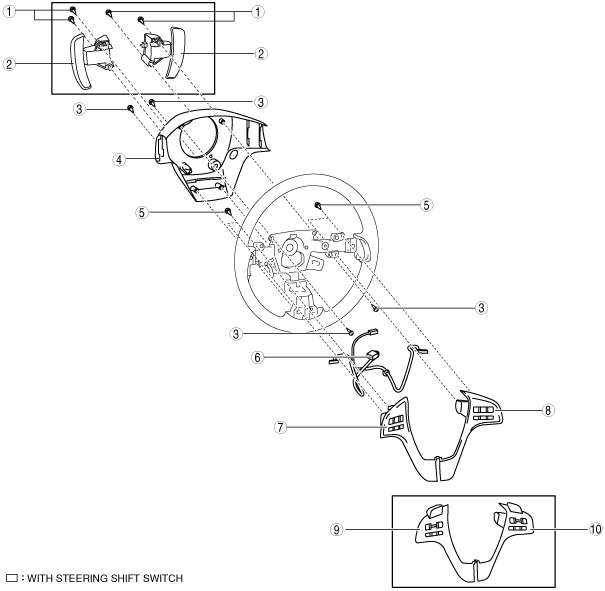

5. Remove in the order indicated in the table.
6. Install in the reverse order of removal.
am6zzw00003204
|
|
1
|
Screw (With steering shift switch)
|
|
2
|
UP switch (With steering shift switch)
|
|
3
|
Screw
|
|
4
|
Cover
(See Cover Removal Note.)
|
|
5
|
Screw
|
|
6
|
Wiring harness
|
|
7
|
Steering switch
|
|
8
|
Cruise control switch (with cruise control system)
|
|
9
|
Steering switch (With steering shift switch)
|
|
10
|
Cruise control switch (With steering shift switch)
|
Cover Removal Note
1. Remove the wiring harness from the cover hook.
am6zzw00000183
|
2. Remove the wiring harness clip.
Wiring Harness Installation Note
1. Secure the wiring harness to the hooks shown in the figure.
am6zzw00000184
|
