AudioPilot®2 MICROPHONE REMOVAL/INSTALLATION

id092000866300

Note

•  AudioPilot^® 2 is a registered trademark of Bose^® Corporation.

1.  Disconnect the negative battery cable.

2.  Remove in the order indicated in the table.

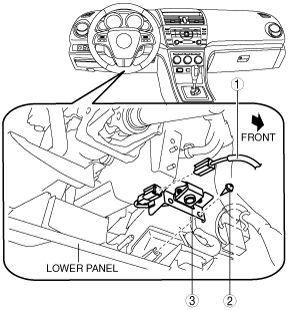

am6zzw00000198

1	Connector
2	Screw
3	AudioPilot® 2 microphone

3.  Install in the reverse order of removal.
