PUSH BUTTON START FUNCTION [WITH ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM]
id0921001500z5

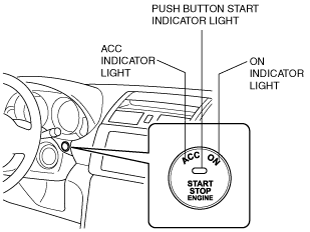

• Each indicator light is controlled by the keyless control module.
Push button start indicator light (Green illuminates)
• Illuminates if the conditions necessary for engine-start are met.
Push button start indicator light (Red illuminates)
• It illuminates when a malfunction is detected or the engine cannot be started.
Push button start indicator light (Red flashes)
• Flashes while in back-up mode.
ACC indicator light
• Indicates that the ignition is in the ACC position.
ON indicator light
• Indicates that the ignition is switched on.
