PUSH BUTTON START OPERATION [WITH ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM]
id0921001531z5
Engine Start/Stop
MTX
-

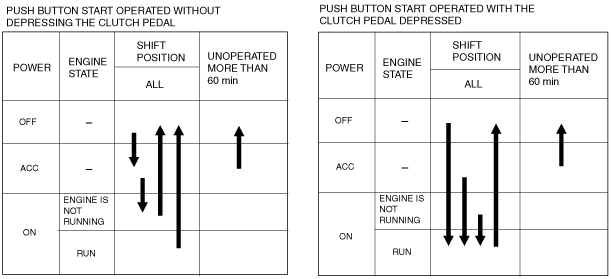

• The ignition can be switched to off/ACC/ON/START by pressing the push button start while the advanced key is being carried.
• The engine starts by pressing the push button start while depressing the clutch pedal.
• The engine can be stopped by operating the button while the engine is running (the vehicle is stopped (vehicle speed is 0 km/h {0 mph})).
ATX
-
• The ignition can be switched to off/ACC/ON/START by pressing the push button start while the advanced key is being carried.
• The engine can be started by operating the button with the brake pedal depressed.
• The engine can be started with the selector lever in P or N position.
• The engine can be stopped by operating the button while the engine is running (the vehicle is stopped (vehicle speed is 0 km/h {0 mph})).
Engine Emergency Stop Operation
• To stop the engine immediately, press the push button start for approx. 3 s or more, or operate the push button start at least three times within approx. 1.5 s. However, while the vehicle is being driven the ignition switches to ACC and after the vehicle stops, the ignition switches off.
Back-up Mode (MTX only)
• If the keyless control module determines that either the clutch pedal position switch or starter interlock switch is malfunctioning, the system switches to back-up mode.
• While in back-up mode the security light (red) in the instrument cluster illuminates and the push button start indicator light flashes red.
-
― Either the clutch pedal position switch or starter interlock switch is on (Clutch pedal is depressed)
― The shift lever is in the neutral position (Neutral switch is on)
