RELAY BLOCK CONSTRUCTION/OPERATION [WITH ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM]
id0921007000z5
• Installed inside the instrument panel.

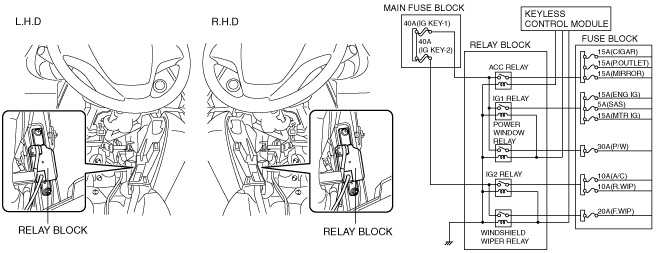

• When the push button start is pressed, the keyless control module energizes the relay in the relay block.
• The energized relay supplies power via fuses to each system.
• The following relays are built into the relay block:
-
― ACC relay
― IG1 relay
― IG2 relay
― Power window relay
― Windshield wiper relay
