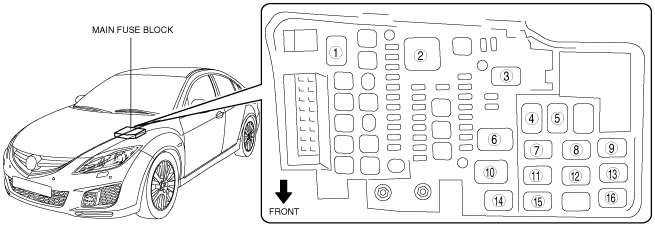

RELAY LOCATION
id092100800600
am6zzw00003306
|
|
1
|
A/C relay
|
|
2
|
Main relay (petrol engine)
|
|
Glow relay (diesel engine)
|
|
|
3
|
Headlight relay (LO)
|
|
4
|
Starter relay
|
|
5
|
Horn relay
|
|
6
|
Fuel pump relay (petrol engine)
|
|
Main relay (diesel engine)
|
|
|
7
|
Accessory socket relay
|
|
8
|
Cooling fan relay No.1
|
|
9
|
Cooling fan relay No.2 (Vehicles equipped with two cooling fan relays)
|
|
Cooling fan relay No.3 (Vehicles equipped with three cooling fan relays)
|
|
|
10
|
Headlight relay (HI)
|
|
11
|
Cooling fan relay No.2 (Vehicles equipped with four cooling fan relays)
|
|
12
|
Cooling fan relay No.4
|
|
13
|
Rear window defroster relay
|
|
14
|
AT relay
|
|
15
|
Front fog light relay
|
|
16
|
Blower relay
|
