INSTRUMENT CLUSTER FUNCTION

id092200100100


Instrument Cluster Controls

•  The microcomputer built into the instrument cluster controls the following functions:

Function

Reference
Key reminder warning alarm
(See KEY REMINDER WARNING ALARM OUTLINE.)
Seat belt warning alarm
(See SEAT BELT WARNING ALARM OUTLINE.)
Ambient temperature warning alarm
(See AMBIENT TEMPERATURE WARNING ALARM OUTLINE.)
Turn and hazard indicator alarm
(See TURN AND HAZARD INDICATOR ALARM OUTLINE.)
Speedometer control
(See SPEEDOMETER CONTROL OUTLINE.)
Tachometer control
(See TACHOMETER CONTROL OUTLINE.)
Fuel gauge control
(See FUEL GAUGE CONTROL OUTLINE.)
Water temperature gauge control
(See WATER TEMPERATURE GAUGE CONTROL OUTLINE.)
Malfunction diagnostic function
(See ON-BOARD DIAGNOSTIC OUTLINE.)


Welcome Mode


Outline

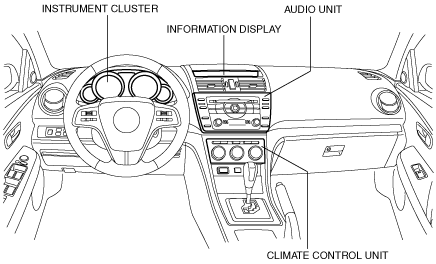

•  The welcome mode is linked to the instrument cluster, information display, audio unit, climate control unit to provide a presentation while in the vehicle using illumination and sound effects.
am6zzn00000578
•  The illumination in the instrument cluster illuminates.
•  The instrument cluster sends a welcome mode initiation signal to the information display, audio unit, and climate control unit.


Operation

Welcome illumination on control
•  If all the following conditions are met, the welcome mode is initiated.
―  Switch the ignition to off or ACC
―  TNS off


Welcome illumination off control

•  If any one of the following conditions are met, the welcome mode stops.
―  Switch the ignition to ON
―  TNS ON
