INFORMATION DISPLAY CONSTRUCTION/OPERATION
id092200100400

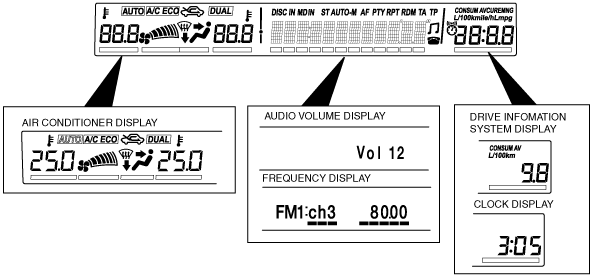

Display Function
• The information display has the following display functions:
-
― Displays sound volume and radio frequency based on the signals from the car navigation unit and audio unit.
― Displays airflow volume, set temperature, and mode based on the signals from the climate control unit.
― Displays momentary and average gasoline mileage based on the signals from the instrument cluster.
Welcome Mode
• "Zoom-Zoom" is displayed in the information display.
• The information display initiates control of the welcome mode when it detects a welcome mode control signal from the instrument cluster.
Input/output Check Function
• An input/output check function has been adopted which performs signal input to the display and examines the LCD according to the micro-computer built into the information display.
Check code
-
• When the signal output part indicated in the table below is activated, the micro-computer performs self-diagnosis of the signal input to the information display. Also, inspection of segments and dots is possible by illuminating the entire LCD.
|
Check code
|
Signal output part
|
Malfunction location
|
|
01
|
Information display
|
CAN system communication error
|
|
02
|
• Audio unit
• Climate control unit
• Instrument cluster
|
Communication error to signal output part
|
|
04
|
Light switch (TNS poisition)
|
Light switch, BCM
|
|
06
|
Ignition switch
|
Ignition switch
|
|
—
|
LCD
|
—
|
Check code display
-
• The check code and inspection display are displayed in the LCD clock and audio display areas.
