SEAT BELT WARNING ALARM CONSTRUCTION/OPERATION

id092200101800

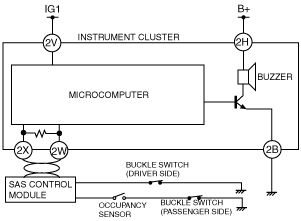

System Wiring Diagram

am6zzn00000115

Operation

•  If all of the following conditions are met, a beeper sounds intermittently as shown in the table.
―  The seat belt (driver side or passenger side) is unfastened (driver side: buckle switch is on, front passenger side: buckle switch is on and occupancy sensor detects passenger).
―  Initialization warning: Vehicle speed is approx. 15—20 km/h {9.4—12.0 mph} or more
―  Recurrent warning: Vehicle speed is 6—10 km/h {4.0—6.2 mph} or more

Initialization warning

Initial warning
6—8 s
Intermediate warning
22—24 s
Main warning
98—102 s

Recurrent warning

Initial warning
6—8 s
Intermediate warning
13—17 s
Main warning
98—102 s


Rear Seat Belt


Construction

•  Installed on the installation area of the rear view mirror.
•  The indicator and the buzzer are built-in corresponding to the seat belt for each rear seat.
am6zzn00000092

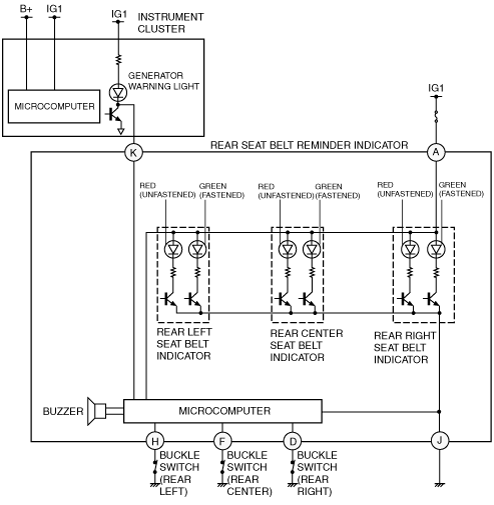

System wiring diagram

am6zzn00000002


Operation

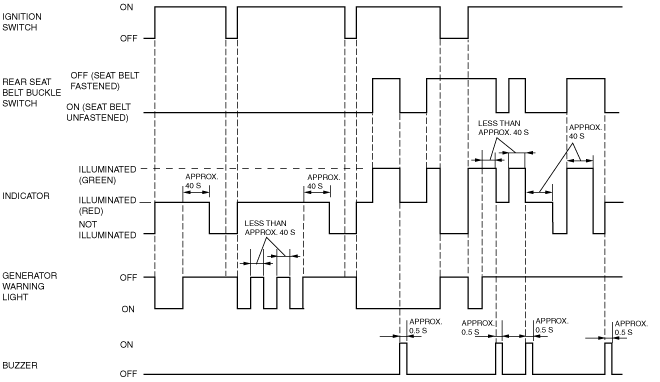

•  After the ignition switch is turned to the ON position, each indicator illuminates continuously while the generator warning light is illuminating.
―  Indicator color when the seat belt is fastened (buckle switch is on) : Green
―  Indicator color when the seat belt is not fastened (buckle switch is off) : Red
•  Each indicator turns off if the condition corresponds to any of the following:
―  When switch the ignition to off.
―  When approx. 40 s have elapsed since the generator warning light turned off.
•  If the buckle switch signal changes (on to off, or off to on) with the ignition switch in the ON position and the indicator is not illuminated, the corresponding seat belt indicator illuminates. In addition, when the buckle switch is changed from off to on (seat belt is not fastened), the buzzer inside the rear seat belt reminder indicator sounds for approx. 0.5 s to alert the driver.
