DRIVE INFORMATION SYSTEM CONSTRUCTION
id092200111300
Instant Update Fuel Economy Mode
• Instant update fuel economy is calculated from the trip distance and the fuel consumption in the previous 2 s.
Calculation
• Instrument fuel economy is updated from every 2 s (indication only changes when difference between present value and next value is 0.8 L/100 km or more).
-
― Instant fuel economy (L/100km)= Fuel consumption over last 2 s (L) / Distance travelled over last 2 s (km)×100
― Instant fuel economy (mile/gallon)= Distance travelled over last 2 s (mile) / Fuel consumption over last 2 s (gallon)
• When fuel is not consumed, for example, when applying an engine brake, <0.0 L/100 km> or <99.9 mpg> is displayed.

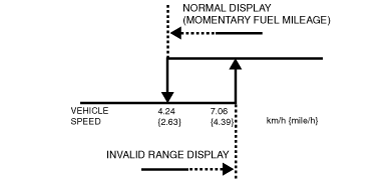

• When the vehicle speed is in the invalid display range (see the following chart), <----/100 km> or <---- mpg> is displayed.
Average Fuel Economy Mode
• Average fuel economy is calculated from the trip distance and the fuel consumption from the time when the battery is last connected or the average fuel economy data is reset.
• Average fuel economy is updated every 1 min.
Calculation
• Average fuel economy (L/100 km)= Cumulative fuel consumption (L) / Cumulative trip distance (km) × 100
• Average fuel economy (gallon/mile)= Cumulative trip distance (mile) / Cumulative fuel consumption (gallon)
• When the cumulative trip distance is 0 km (0 mile) (vehicle has not traveled since battery was last connected or average fuel economy function was last reset), <999.9 L/100 km> or <0.0 mpg> is displayed.
• When the set switch (without car-navigation system), or an enter switch (up/down switch) (with car-navigation system) is pressed for 1 s or more while displaying the average fuel economy, the cumulative fuel consumption data and cumulative trip distance data are reset.
• After the data are reset, <---- L/100 km> or <---- mpg> is displayed for 1 min.
Remaining Possible Travel Distance Mode
• Remaining possible travel distance is calculated from the past 0.1 km (0.06 mile) interval fuel consumption (L/km or gallon/mile), the cumulative fuel consumption (L/km or gallon/mile), and the remaining travel quantity (L or gallon).
• Remaining possible travel distance is updated every 1 s.
Calculation
• Remaining travel distance (km or mile)= Remaining fuel quantity (L or gallon) / Cumulative fuel consumption (L/km or gallon/mile) + Past 0.1 km (0.06 mile) interval fuel consumption (L/km or gallon/mile)
Average Vehicle Speed Mode
• Average vehicle speed is calculated from the distance driven and the specified time from the time the battery is last connected or the average vehicle speed data is last reset.
• Average vehicle speed is updated every 10 s.
Calculation
• Average vehicle speed (km/h or mile/h)= Cumulative distance driven (km or mile) / Cumulative specified time (hour)
• When the set switch (up/down switch) (without car-navigation system), or an enter switch (up/down switch) (with car-navigation system) is pressed for 1 s or more while displaying the average vehicle speed, the cumulative distance driven data and the cumulative specified time data are reset.
• After the data are reset, <---- km/h> or <---- mile/h> is displayed for 1 min.
Vehicle Speed Alarm
• Displays the vehicle speed alert set by the driver.
• The possible speed setting range is 30—250 km/h (20—150 mph).
• Switching is possible at 10 km/h (10 mph) intervals.
• The warning alarm, which triggers when the set speed is exceeded, sounds for approx.1 s, and the LCD in the instrument cluster flashes for approx. 5 s.
Set vehicle speed is exceeded
