PARKING SENSOR CONTROL MODULE REMOVAL/INSTALLATION

id092200775400

Removal

1.  Disconnect the negative battery cable.

2.  Disconnect the connector.

3.  Remove the nut.

L.H.D.

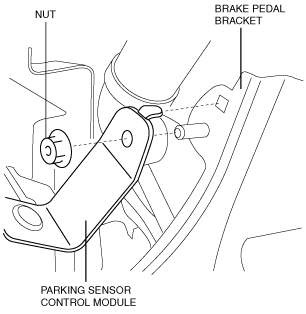

am6zzw00002911

R.H.D.

am6zzw00002760

4.  Remove the parking sensor control module.

Installation

L.H.D.

1.  Install the nut.

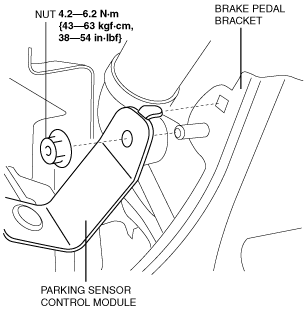

am6zzw00002759

R.H.D.

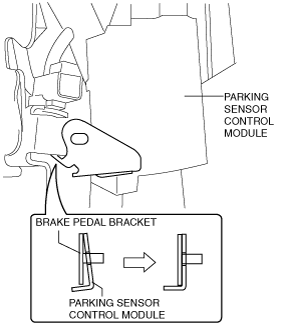

1.  Install the parking sensor control module to the brake pedal bracket as shown in the figure.

am6zzw00002761

2.  Connect the parking sensor control module bracket hook to the brake pedal bracket and tighten the nut as shown in the figure.

am6zzw00002762
