PARKING SENSOR BUZZER CONSTRUCTION/OPERATION


id092200776000

•  Two parking sensor buzzers are provided for the front and rear.

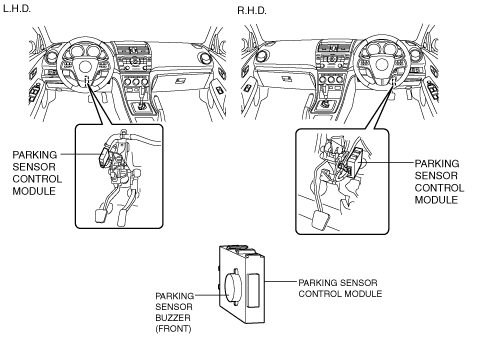

•  The front buzzer is integrated in the parking sensor control module.
am6zzn00000940
•  The installation position for the rear buzzer is different for the 4SD and 5HB/WGN. The 4SD type is installed to the back of the rear package member, and the 5HB/WGN to the liftgate.
am6zzn00001096
•  The buzzer operates according to control from the parking sensor control module.
•  The volume can be adjusted by turning the knob of the parking sensor control module.
am6zzn00000949
