ULTRASONIC SENSOR CONSTRUCTION/OPERATION


id092200887900

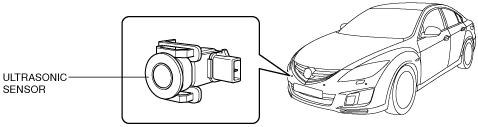

•  Consists of eight ultrasonic sensors, two on the front of the front bumper, two on the rear of the rear bumper, and one on each corner of the front/rear bumpers.
am6zzn00000625
•  The ultrasonic sensor is integrated with the connector and installed to the bumper using a retainer.
•  A flat type ultrasonic sensor with no concavity on its front edge surface has been adopted. The color is the same as the body color.
•  All ultrasonic sensors are identical.
