PARKING SENSOR OPERATION


id092200888400


System Operation

•  When the parking sensor activates, it performs initialization to check its operation, and then changes to obstruction alert status.
•  When the system is initialized, the front buzzer sounds for approx. 0.8 s. When the shift lever is in any position except the R position with the parking brake released, the system changes to obstruction alert status. When the shift lever is in the R position with the parking brake released, the parking sensor buzzer (rear) activates for approx. 0.8 s and switches to obstruction notification status. The driver can verify that the system is operating correctly by the front/rear buzzer sound.
•  During obstruction alert status, a warning buzzer will activate if an obstruction is detected while the parking brake switch is turned off. (Parking brake is released.) The operating ultrasonic sensor differs depending on the vehicle speed. Also, refer to the table below for details concerning the operating ultrasonic sensor.

×: Operates—: Does not operate

Conditions
Ultrasonic sensor
Front
Rear
Parking brake
Shift lever
Vehicle speed
Corner
Front
Corner
Back
ON (pulled)
OFF (released)
Except R position
10—15 km/h {6.3—9.3 mph} or less
×
×
10—15 km/h {6.3—9.3 mph} or more
R position
10—15 km/h {6.3—9.3 mph} or less
×
×
×
10—15 km/h {6.3—9.3 mph} or more
×

•  To prevent detection error due to the washer nozzle operation while the headlight washers are operating, the detection condition just before the headlight washer switch is turned on is maintained for approx. 2 s after the headlight washer switch is turned on.

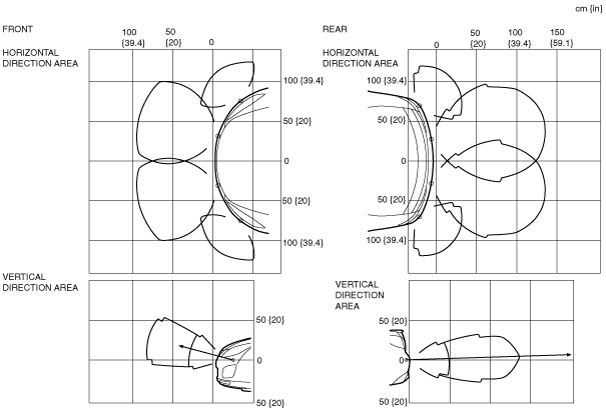

Obstruction Detection Area

•  The front/rear ultrasonic sensor detection areas are as follows:
am6zzn00000538

Warning Alarm Sound Pattern


System is initialized

•  When the system is initialized, the front buzzer sounds for approx. 0.8 s. When the shift lever is in any position except the R position with the parking brake released, the system changes to obstruction alert status. When the shift lever is in the R position with the parking brake released, the parking sensor buzzer (rear) activates for approx. 0.8 s and switches to obstruction notification status. The driver can verify that the system is operating correctly by the front/rear buzzer sound.
am6zzn00000570


Obstructions are detected

•  The amount of time the buzzer sound is on or off changes as follows according to the distance between the vehicle and the detected obstruction:

Ultrasonic sensor
Zone
Distance from obstruction
ON status
OFF status
Corner sensor
Short distance
0—30 cm
{0—11 in}
Continuously
0 ms
Intermediate distance
25—42.5 cm
{9.9—16.7 in}
55—95 ms
55—95 ms
Long distance
37.5—55 cm
{14.8—21.0 in} (Front)
37.5—50 cm
{14.8—19.0 in} (Rear)
120—180 ms
120—180 ms
Front sensor
Back sensor
Short distance
0—40 cm
{0—15 in}
Continuously
0 ms
Intermediate distance
35—55 cm
{14—21 in}
55—95 ms
55—95 ms
Long distance
45—70 cm
{18—27 in}
120—180 ms
120—180 ms
Maximum long distance
60—115 cm (Front)
{24.0—45.2 in}
60—165 cm (Back)
{24.0—64.9 in}
120—180 ms
520—780 ms

The detection distance changes when the tow bar switch is on

Ultrasonic sensor
Zone
Distance from obstruction
ON status
OFF status
Corner sensor
Short distance
0—30 cm
{0—11 in}
Continuously
0 ms
Intermediate distance
25—42.5 cm
{9.9—16.7 in}
55—95 ms
55—95 ms
Long distance
37.5—55 cm
{14.8—21.0 in} (Front)
37.5—50 cm
{14.8—19.0 in} (Rear)
120—180 ms
120—180 ms
Front sensor
Short distance
0—40 cm
{0—15 in}
Continuously
0 ms
Intermediate distance
35—55 cm
{14—21 in}
55—95 ms
55—95 ms
Long distance
45—70 cm
{18—27 in}
120—180 ms
120—180 ms
Maximum long distance
60—115 cm
{24.0—45.2 in}
120—180 ms
520—780 ms
Back sensor
Short distance
35—50 cm
{14—19 in}
Continuously
0 ms
Intermediate distance
45—65 cm
{18—25 in}
55—95 ms
55—95 ms
Long distance
55—80 cm
{22—31 in}
120—180 ms
120—180 ms
Maximum long distance
70—165 cm
{28.0—64.9 in}
120—180 ms
520—780 ms

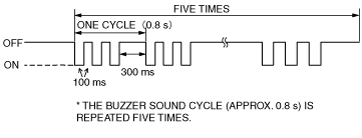

Ultrasonic sensor error is detected

•  If the parking sensor control module detects an open circuit in the ultrasonic sensor circuit or a frozen ultrasonic sensor, it activates the transistor for the buzzer ON/OFF control to operate the buzzer as shown in the following figure:
•  If there is a ultrasonic sensor error, the buzzer sound cycle (approx. 0.8 s) is repeated five times. The parking sensor control module flashes the parking sensor switch indicator light while it detects an error.
am6zzn00000539


Customize function

•  The parking sensor has a customize function.
•  By setting the customize function, the ultrasonic sensor operation areas can be changed if a trailer/tow-bar switch (dealer's option) is installed.
•  The customize function can be set using the M-MDS.
•  The ultrasonic sensor operation condition is as follows when the customize function is set:

Trailer switch: OFF, Tow-bar switch: OFF

×: Operates—: Does not operate

Conditions
Ultrasonic sensor
Parking brake
Shift lever
Vehicle speed
Front corner
Front
Rear corner
Back
ON (pulled)
OFF (released)
Except R position
10—15 km/h {6.3—9.3 mph} or less
×
×
10—15 km/h {6.3—9.3 mph} or more
R position
10—15 km/h {6.3—9.3 mph} or less
×
×
×
10—15 km/h {6.3—9.3 mph} or more
×

Trailer switch is ON

×: Operates—: Does not operate

Conditions
Ultrasonic sensor
Parking brake
Shift lever
Vehicle speed
Front corner
Front
Rear corner
Back
ON (pulled)
OFF (released)
Except R position
10—15 km/h {6.3—9.3 mph} or less
×
×
10—15 km/h {6.3—9.3 mph} or more
R position
10—15 km/h {6.3—9.3 mph} or less
×
10—15 km/h {6.3—9.3 mph} or more

Tow-bar switch is ON

×: Operates—: Does not operate

Conditions
Ultrasonic sensor
Parking brake
Shift lever
Vehicle speed
Front corner
Front
Rear corner
Back
ON (pulled)
OFF (released)
Except R position
10—15 km/h {6.3—9.3 mph} or less
×
×
10—15 km/h {6.3—9.3 mph} or more
R position
10—15 km/h {6.3—9.3 mph} or less
×
×
×
10—15 km/h {6.3—9.3 mph} or more
×
