SHROUD SIDE PANEL INSTALLATION [PANEL REPLACEMENT]

id098008602800

Symbol Mark

am6zzb00000014

Installation Procedure

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  Drill holes for plug welds before installing new parts.

3.  After temporarily installing new parts, make sure the related parts fit properly.

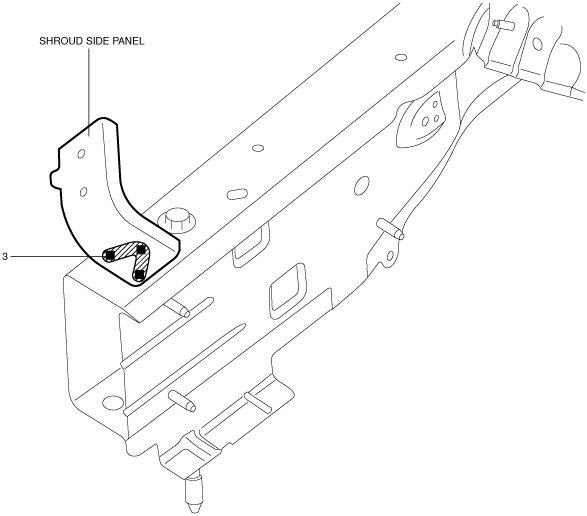

4.  Plug weld the 3 locations indicated shown in the figure.
