APRON REINFORCEMENT (LOWER) REMOVAL [PANEL REPLACEMENT]

id098008741300

Symbol Mark

am6zzb00000054

Removal Procedure

Left-side

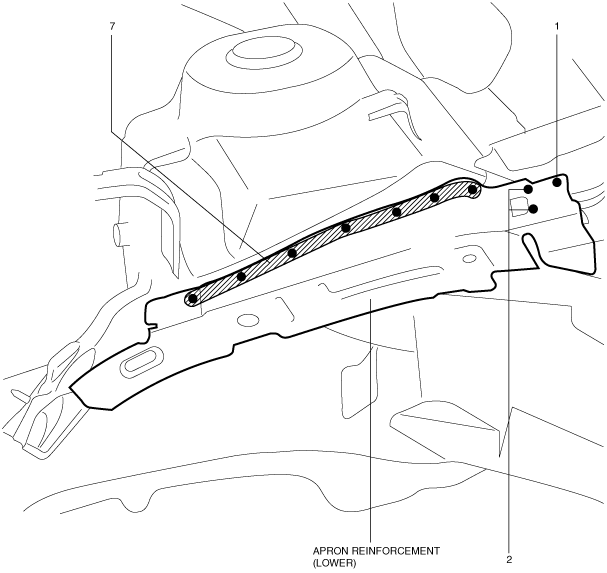

1.  Drill the 10 locations indication shown in the figure.

am6zzb00000055

2.  Remove the apron reinforcement (lower).

Right-side

1.  Drill the 14 locations indication shown in the figure.

am6zzb00000152

2.  Remove the apron reinforcement (lower).
