FRONT SIDE FRAME COMPONENT INSTALLATION [PANEL REPLACEMENT]

id098008742000

Symbol Mark

am6zzb00000241

Installation Procedure

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  Drill holes for the plug welding before installing the new parts.

3.  After temporarily installing new parts, make sure the related parts fit properly.

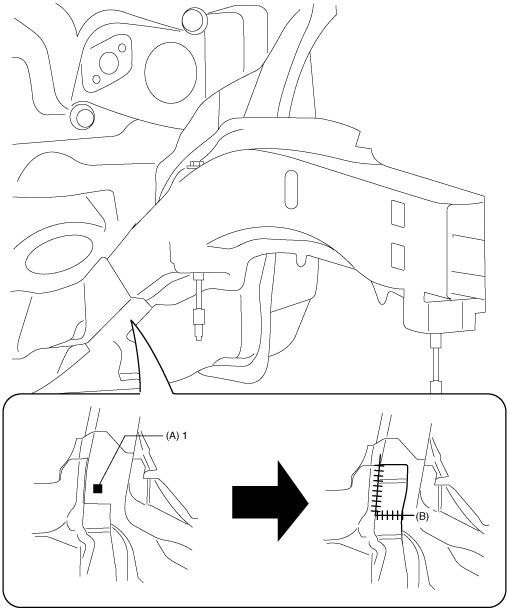

4.  Plug weld the 1 location indicated by (A) shown in the figure.

am6zzb00000168

5.  Cut-and-join area indicated by (B) shown in the figure.

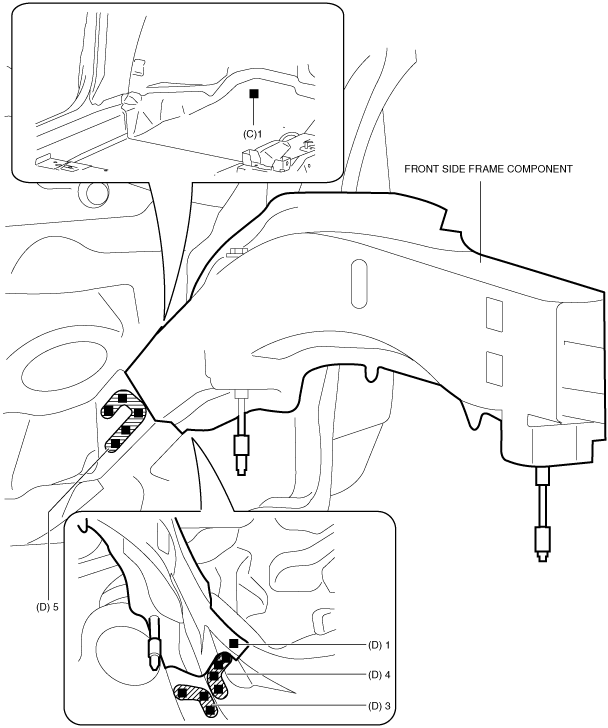

6.  Plug weld the 1 location indicated by (C) shown in the figure.

am6zzb00000070

Note

•  Plug weld the 1 location indicated by (C) from the interior.

7.  Plug weld the 13 locations indicated by (D) shown in the figure.
