FRONT BUMPER BRACKET INSTALLATION [PANEL REPLACEMENT]

id098008743200

Symbol Mark

am6zzb00000036

Installation Procedure

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  After temporarily installing new parts, make sure the related parts fit properly.

3.  Continuous CO² arc weld the 7 locations indicated by (A) shown in the figure.

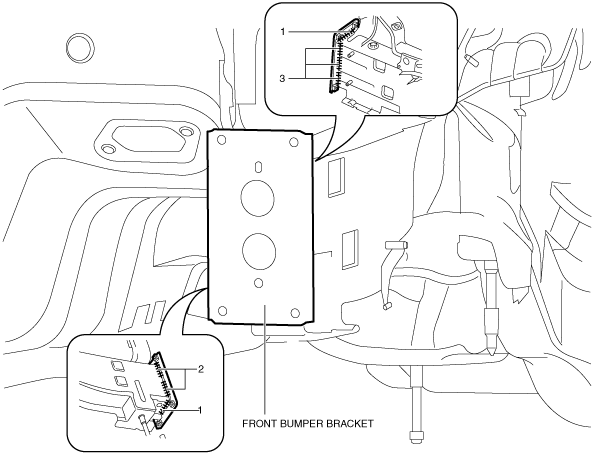

am6zzb00000037

4.  Cut-and-join area locations indicated by (B) shown in the figure.
