CENTER PILLAR REMOVAL [PANEL REPLACEMENT]

id098008743900

Symbol Mark

am2zzb00000090

Removal Procedure

Caution

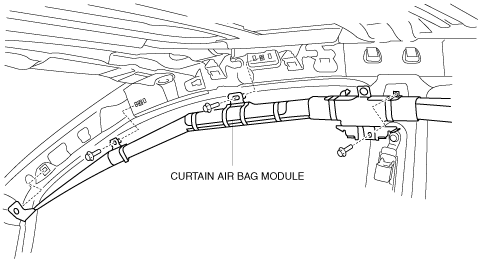

•  Remove the curtain air bag module to prevent damage before servicing.

Front-side

am6zzb00000144

Rear-side

am6zzb00000145

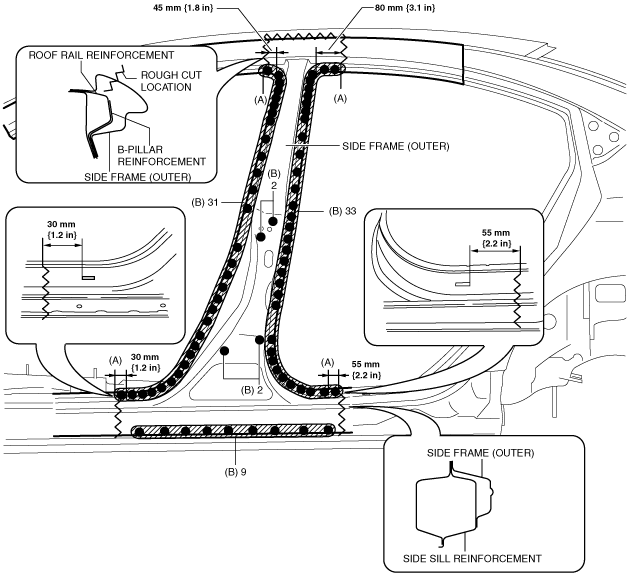

1.  Rough cut area locations indicated by (A) then drill the 77 locations indicated by (B) shown in the figure.

am6zzb00000279

Caution

•  During rough cutting, be careful not to damage the roof rail reinforcement and side sill reinforcement.

2.  Remove the center pillar (outer).

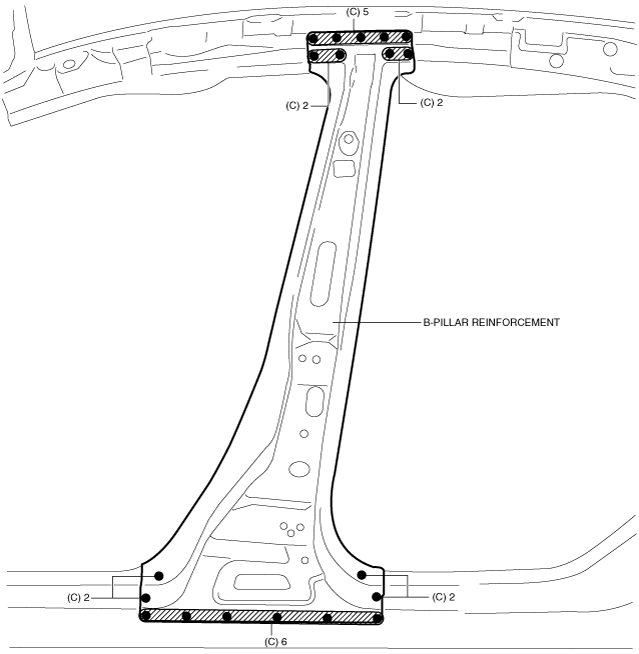

3.  Drill the 19 locations indicated by (C) shown in the figure.

am6zzb00000082

4.  Remove the B-pillar reinforcement.

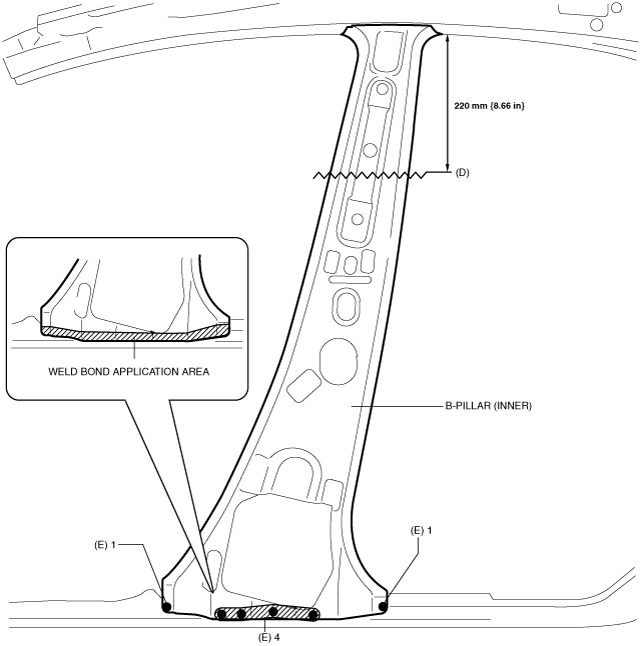

5.  Rough cut area locations indicated by (D) then drill the 6 locations indicated by (E) shown in the figure.

am6zzb00000083

6.  Remove the weld bond using a chisel and remove the B-pillar (inner) shown in the figure.

7.  Remove the B-pillar (inner).
