ROOF PANEL REMOVAL [PANEL REPLACEMENT]

id098008744300

Symbol Mark

am2zzb00000124

Removal Procedure

4SD

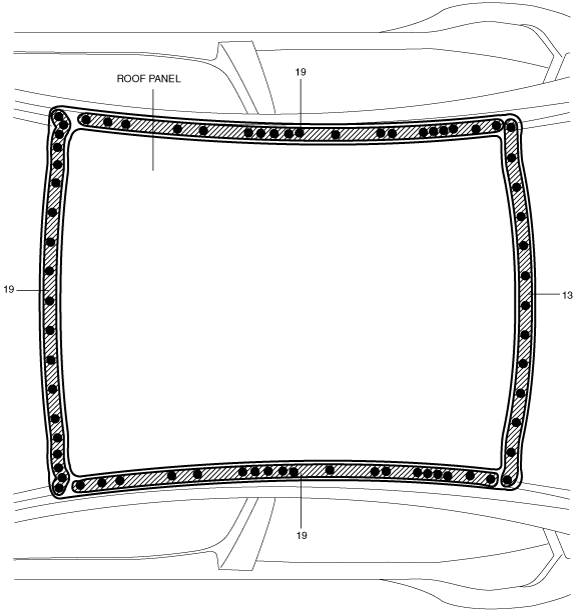

1.  Drill the 70 locations indicated shown in the figure.

am6zzb00000259

2.  Remove the roof panel.

5HB

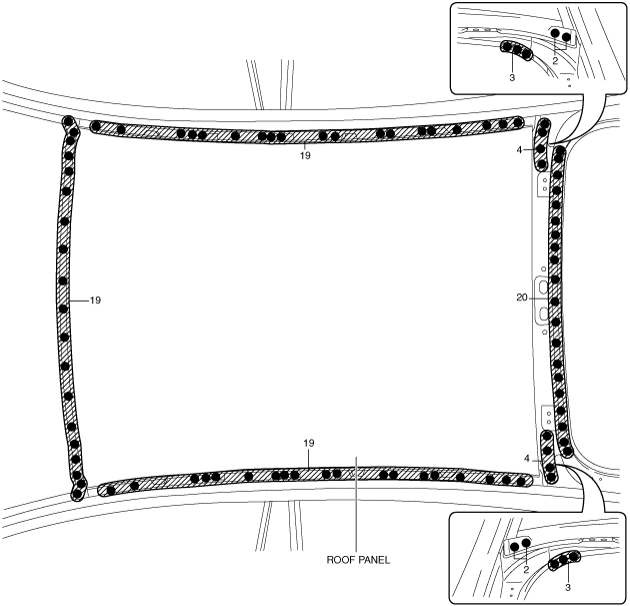

1.  Drill the 95 locations indicated shown in the figure.

am6zzb00000188

2.  Remove the roof panel.

Wagon

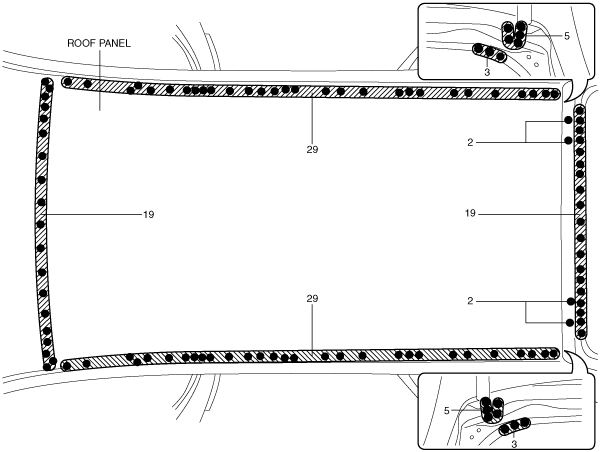

1.  Drill the 116 locations indicated shown in the figure.

am6zzb00000247

2.  Remove the roof panel.
