REAR END PANEL REMOVAL [PANEL REPLACEMENT]

id098008744500

Symbol Mark

am6zzb00000104

Removal Procedure

4SD

1.  Drill the 55 locations indicated shown in the figure.

am6zzb00000182

2.  Remove the rear end panel.

5HB

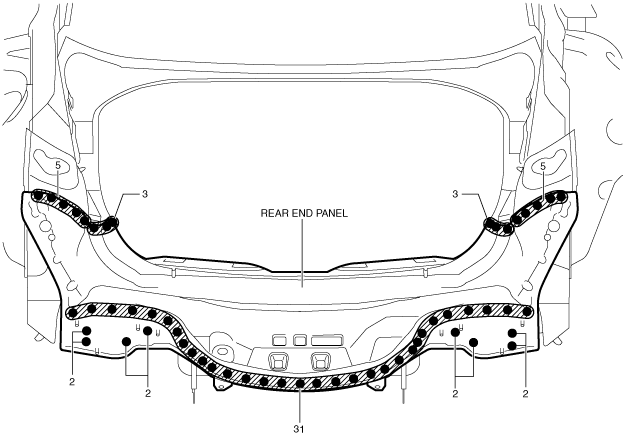

1.  Drill the 67 locations indicated by (A) shown in the figure.

am6zzb00000274

2.  Drill the 12 location indicated by (B) shown in the figure.

Note

•  Drill the 12 location indicated by (B) from the interior.

3.  Remove the rear end panel.

Wagon

1.  Drill the 55 locations indicated by (A) shown in the figure.

am6zzb00000261

2.  Drill the 12 location indicated by (B) shown in the figure.

Note

•  Drill the 12 location indicated by (B) from the interior.

3.  Remove the rear end panel.
