REAR END PANEL INSTALLATION [PANEL REPLACEMENT]

id098008744600

Symbol Mark

am6zzb00000106

Installation Procedure

4SD

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  Drill holes for the plug welding before installing the new parts.

3.  Apply body sealer to the joints of old and new parts for waterproofing and rust protection.

4.  After temporarily installing new parts, make sure the related parts fit properly.

5.  Plug weld the 55 locations indicated shown in the figure.

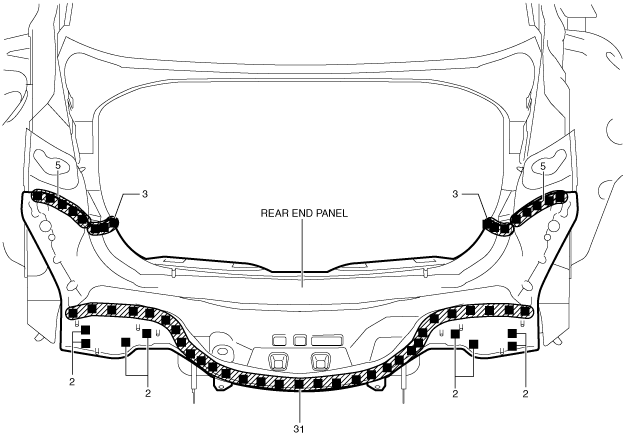

am6zzb00000183

5HB

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  Drill holes for the plug welding before installing the new parts.

3.  Apply body sealer to the joints of old and new parts for waterproofing and rust protection.

4.  After temporarily installing new parts, make sure the related parts fit properly.

5.  Plug weld the 67 locations indicated by (A) shown in the figure.

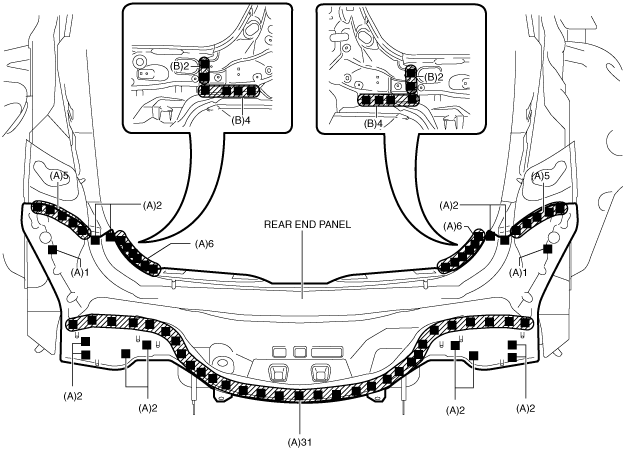

am6zzb00000275

6.  Plug weld the 12 location indicated by (B) shown in the figure.

Note

•  Plug weld the 12 location indicated by (B) from the interior.

Wagon

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  Drill holes for the plug welding before installing the new parts.

3.  Apply body sealer to the joints of old and new parts for waterproofing and rust protection.

4.  After temporarily installing new parts, make sure the related parts fit properly.

5.  Plug weld the 55 locations indicated by (A) shown in the figure.

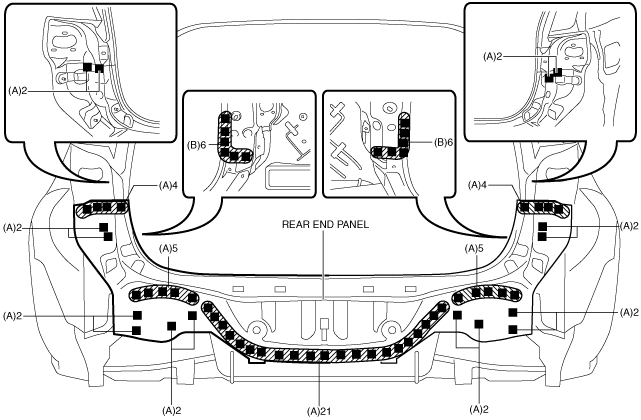

am6zzb00000262

6.  Plug weld the 12 location indicated by (B) shown in the figure.

Note

•  Plug weld the 12 location indicated by (B) from the interior.
