FRONT PILLAR INSTALLATION [PANEL REPLACEMENT]

id098008744800

Symbol Mark

am2zzb00000087

Installation Procedure

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  Drill holes for the plug welding before installing the new parts.

3.  Apply body sealer to the joints of old and new parts for waterproofing and rust protection.

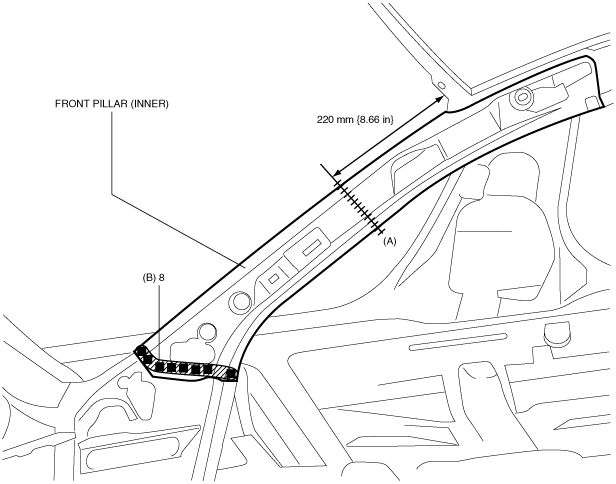

4.  Cut-and-join area locations indicated by (A) then plug weld the 8 locations indicated by (B) shown in the figure.

am6zzb00000077

5.  Cut-and-join area locations indicated by (C) then plug weld the 24 locations indicated by (D) shown in the figure.

am6zzb00000078

6.  After temporarily installing new parts, make sure the related parts fit properly.

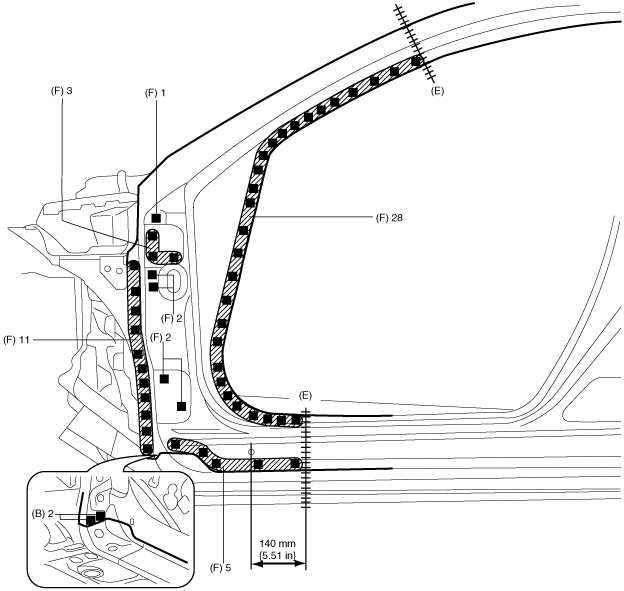

7.  Cut-and-join area locations indicated by (E) then plug weld the 79 locations indicated by (F) shown in the figure.

am6zzb00000079
