REAR FENDER PANEL INSTALLATION [PANEL REPLACEMENT]

id098008745000

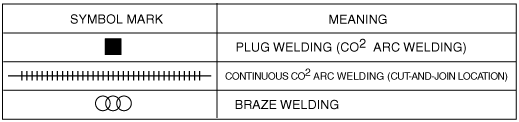

Symbol Mark

am6zzb00000239

Installation Procedure

4SD

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  Drill holes for the plug welding before installing the new parts.

3.  Before installing new parts, apply spot weld sealer to the tire arch line.

4.  After temporarily installing new parts, make sure the related parts fit properly.

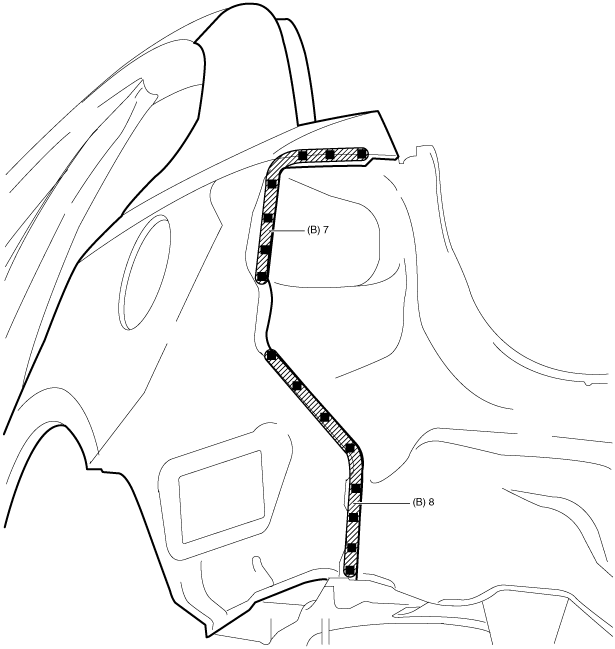

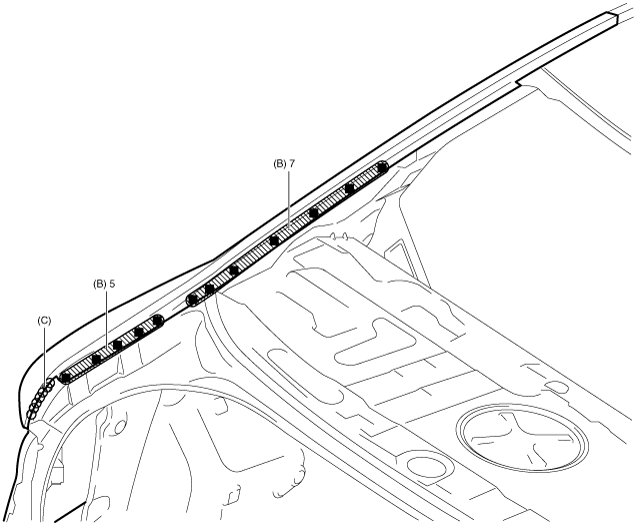

5.  Cut-and-join area locations indicated by (A) then plug weld 96 locations indicated by (B) shown in the figure.

6.  Braze weld the location indicated by (C) shown in the figure.

am6zzb00000098

am6zzb00000099

am6zzb00000100

am6zzb00000101

5HB

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  Drill holes for the plug welding before installing the new parts.

3.  Before installing new parts, apply spot weld sealer to the tire arch line.

4.  After temporarily installing new parts, make sure the related parts fit properly.

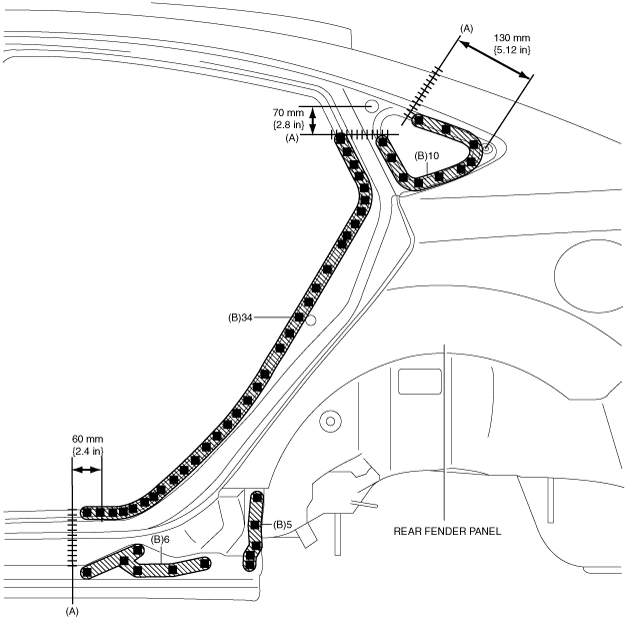

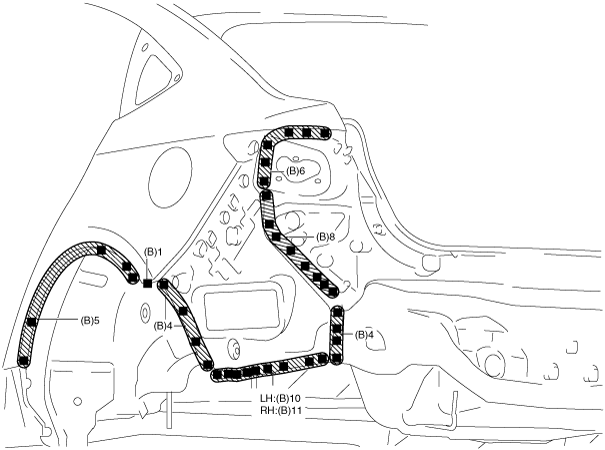

5.  Cut-and-join area locations indicated by (A) then plug weld 104 (LH) or 105 (RH) locations indicated by (B) shown in the figure.

am6zzb00000265

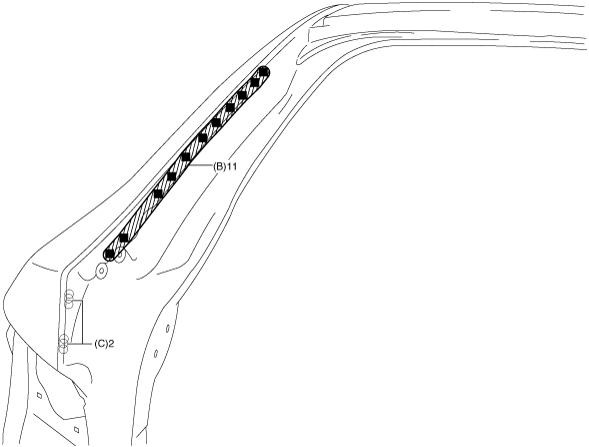

6.  Braze weld the 2 locations indicated by (C) shown in the figure.

am6zzb00000200

am6zzb00000299

Wagon

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  Drill holes for the plug welding before installing the new parts.

3.  Before installing new parts, apply spot weld sealer to the tire arch line.

4.  After temporarily installing new parts, make sure the related parts fit properly.

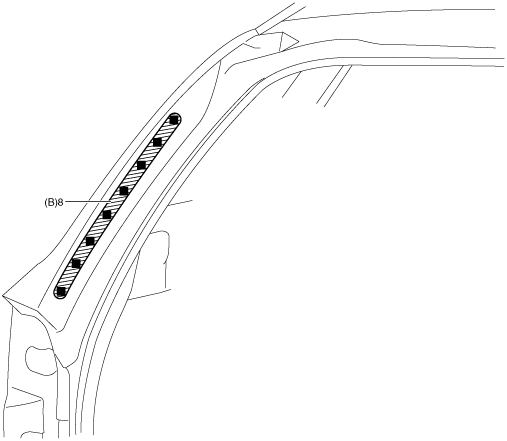

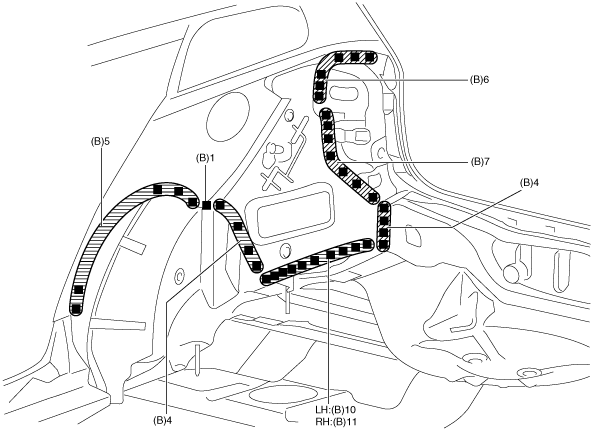

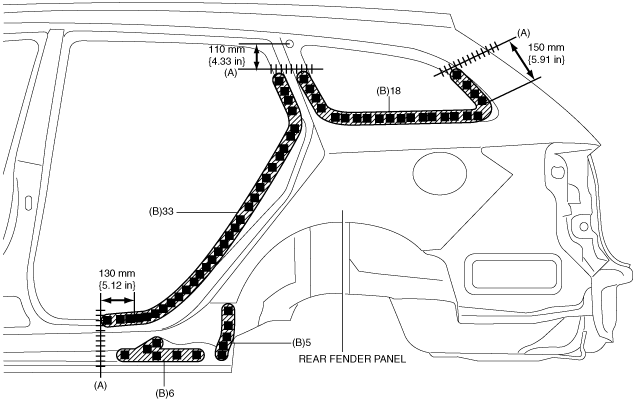

5.  Cut-and-join area locations indicated by (A) then plug weld 107 (LH) or 108 (RH) locations indicated by (B) shown in the figure.

am6zzb00000266

am6zzb00000107

am6zzb00000300
