WHEEL APRON COMPONENT REMOVAL [PANEL REPLACEMENT]

id098008746000

Symbol Mark

am6zzb00000060

Removal Procedure

Left-side

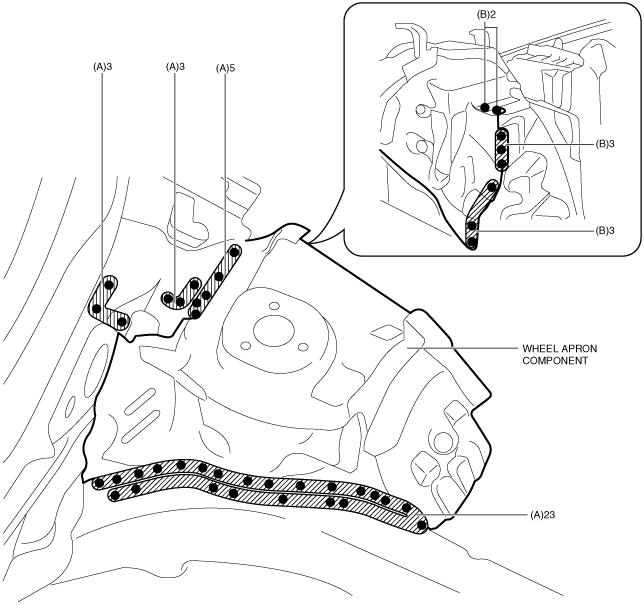

1.  Drill the 34 locations indicated by (A), drill the 8 locations indicated by (B) shown in the figure.

am6zzb00000061

Note

•  Drill the 8 locations indicated by (B) from the front wheel housing.

2.  Remove the wheel apron component.

Right-side

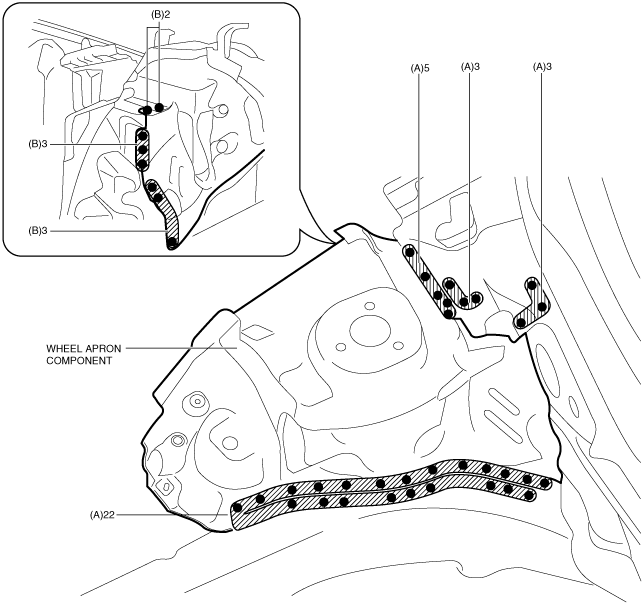

1.  Drill the 33 locations indicated by (A), drill the 8 locations indicated by (B) shown in the figure.

am6zzb00000158

Note

•  Drill the 8 locations indicated by (B) from the front wheel housing.

2.  Remove the wheel apron component.
