REAR PILLAR (OUTER) AND CORNER PLATE REMOVAL [PANEL REPLACEMENT]

id098008956000

Symbol Mark

am6zzb00000010

Removal Procedure

5HB

1.  Rough cut area locations indicated by (A) then drill the 24 locations indicated by (B) shown in the figure.

Note

•  When removing the rear pillar (outer) and the corner plate separately, drill the 3 locations indicated by (C) shown in the figure.

am6zzb00000203

am6zzb00000204

2.  Remove the rear pillar (outer) and corner plate.

Wagon

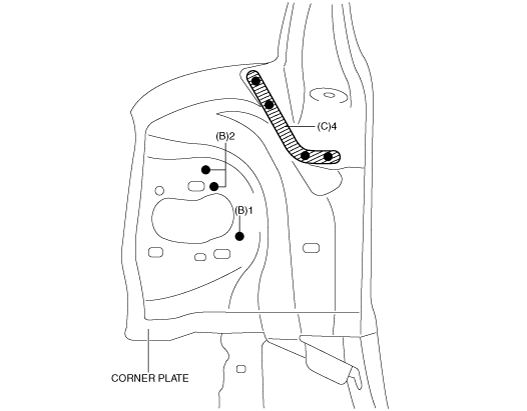

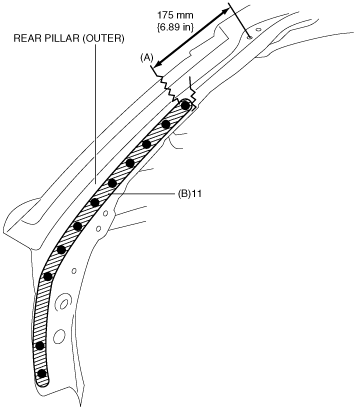

1.  Rough cut area locations indicated by (A) then drill the 14 locations indicated by (B) shown in the figure.

Note

•  When removing the rear pillar (outer) and the corner plate separately, drill the 4 locations indicated by (C) shown in the figure.

am6zzb00000267

am6zzb00000268

2.  Remove the rear pillar (outer) and corner plate.
