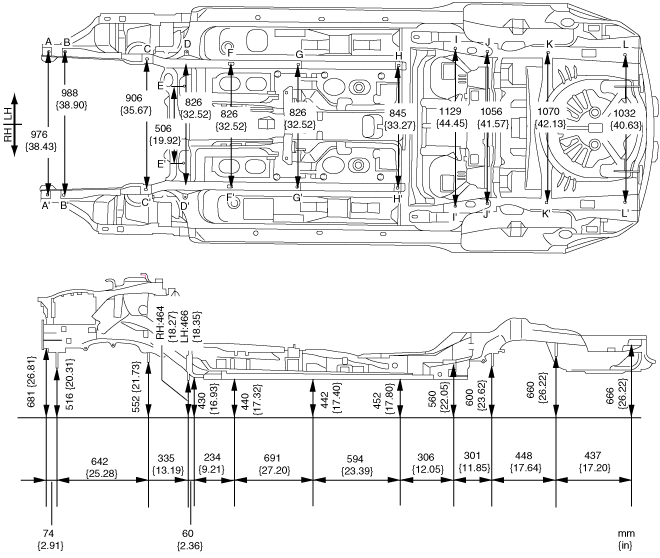

UNDERBODY FLAT-PLANE DIMENSIONS [DIMENSIONS]
id098010740400
am6zzb00000127
|
|
Point symbol |
Designation |
Hole diameter or bolt or nut size (mm {in}) |
|---|---|---|
|
A
|
Front side frame (outer) datum hole
|
φ16 {0.63}
|
|
B
|
Suspension mounting bolt
|
M14 {0.55}
|
|
C
|
Suspension mounting bolt
|
M14 {0.55}
|
|
D
|
Front frame (rear) datum hole
|
φ14 {0.55}
|
|
E
|
Suspension mounting bolt
|
M14 {0.55}
|
|
F
|
Front B frame datum hole
|
φ8 {0.3}
|
|
G
|
Front B frame (rear) datum hole
|
φ8 {0.3}
|
|
H
|
Rear suspension member installation hole
|
φ7 {0.3}
|
|
I
|
Rear side frame datum hole
|
φ14 {0.55}
|
|
J
|
Rear suspension mounting bolt
|
M12 {0.47}
|
|
K
|
Rear suspension mounting bolt
|
M12 {0.47}
|
|
L
|
Rear side frame datum hole
|
φ5.2 {0.20}
|
