FRONT BODY STRAIGHT-LINE DIMENSIONS (1) [DIMENSIONS]
id098010740600
am6zzb00000130
|
am6zzb00000131
|
|
Point symbol |
Designation |
Hole diameter or bolt or nut size (mm {in}) |
|---|---|---|
|
A
|
Roof seamless location
|
-
|
|
B
|
Front pillar projection location
|
-
|
|
C
|
Bonnet hinge installation hole
|
φ8 {0.3}
|
|
D
|
Suspension housing (upper) datum hole
|
φ10.2 {0.402}
|
|
E
|
Apron reinforcement (upper)datum hole
|
φ12 {0.47}
|
|
F
|
Shroud side member datum hole
|
φ7 {0.3}
|

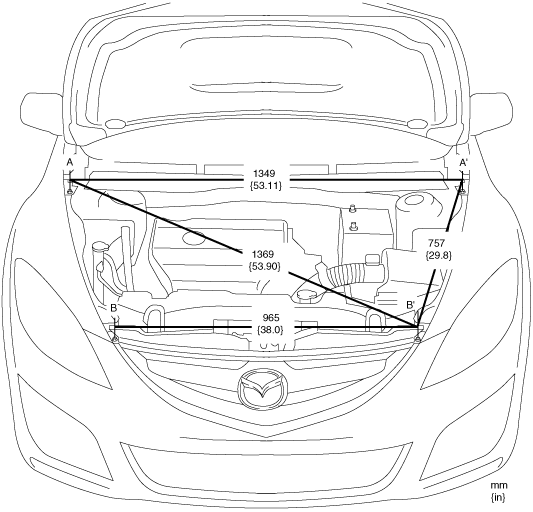

With Mechanical Part Dimension
