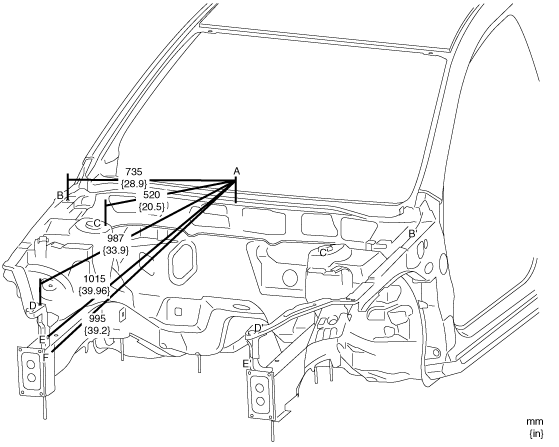

FRONT BODY STRAIGHT-LINE DIMENSIONS (2) [DIMENSIONS]

id098010740700

am6zzb00000132

am2zzb00000128

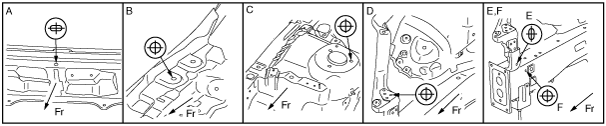

Point symbol

Designation

Hole diameter or bolt or nut size (mm {in})

A

Dash upper panel datum hole

10×14

{0.39×0.55}

B

Bonnet hinge installation hole

φ8 {0.3}

C

Suspension housing (upper) datum hole

φ10.2 {0.402}

D

Shroud side member datum hole

φ9 {0.4}

E

Shroud side panel datum hole

φ7×10

{0.3×0.39}

F

Front side frame datum hole

φ7 {0.3}

Point symbol	Designation	Hole diameter or bolt or nut size (mm {in})
A	Dash upper panel datum hole	10×14 {0.39×0.55}
B	Bonnet hinge installation hole	φ8 {0.3}
C	Suspension housing (upper) datum hole	φ10.2 {0.402}
D	Shroud side member datum hole	φ9 {0.4}
E	Shroud side panel datum hole	φ7×10 {0.3×0.39}
F	Front side frame datum hole	φ7 {0.3}
