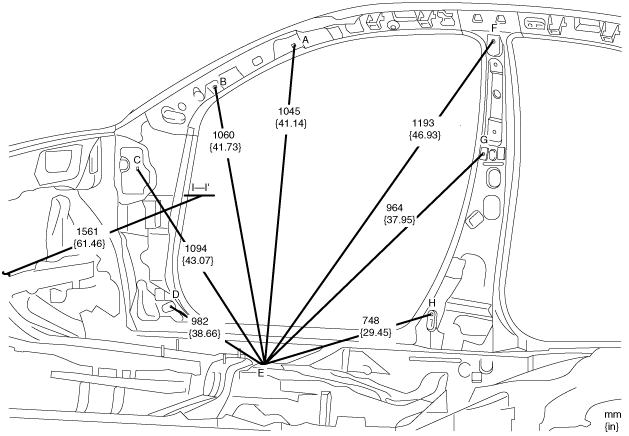

ROOM STRAIGHT-LINE DIMENSIONS (1) [DIMENSIONS]

id098010743300

am6zzb00000137

am6zzb00000138

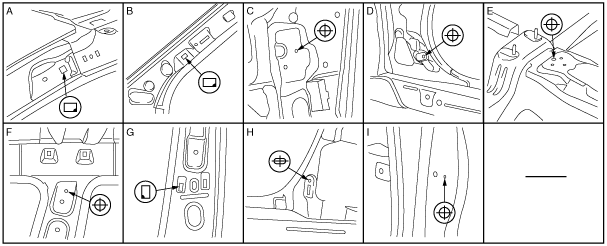

Point symbol

Designation

Hole diameter or bolt or nut size (mm {in})

A

Front pillar (inner) square hole

8×8

{0.3×0.3}

B

Cowl gusset datum hole

8×14

{0.3×0.55}

C

Hinge pillar (inner) datum hole

φ6 {0.3}

D

Hinge pillar (inner) datum hole

φ7 {0.3}

E

Parking brake lever installation hole

φ10 {0.39}

F

Curtain air bag module installation hole

φ7 {0.3}

G

B-pillar upper trim installation square hole

8×14

{0.3×0.55}

H

Center pillar (inner) datum hole

φ7 {0.3}

I

Front door checker installation hole

φ4 {0.2}

Point symbol	Designation	Hole diameter or bolt or nut size (mm {in})
A	Front pillar (inner) square hole	8×8 {0.3×0.3}
B	Cowl gusset datum hole	8×14 {0.3×0.55}
C	Hinge pillar (inner) datum hole	φ6 {0.3}
D	Hinge pillar (inner) datum hole	φ7 {0.3}
E	Parking brake lever installation hole	φ10 {0.39}
F	Curtain air bag module installation hole	φ7 {0.3}
G	B-pillar upper trim installation square hole	8×14 {0.3×0.55}
H	Center pillar (inner) datum hole	φ7 {0.3}
I	Front door checker installation hole	φ4 {0.2}
