BODY COMPONENTS CONSTRUCTION [BODY STRUCTURE]

id098013739700

4SD

European (L.H.D.) specs.

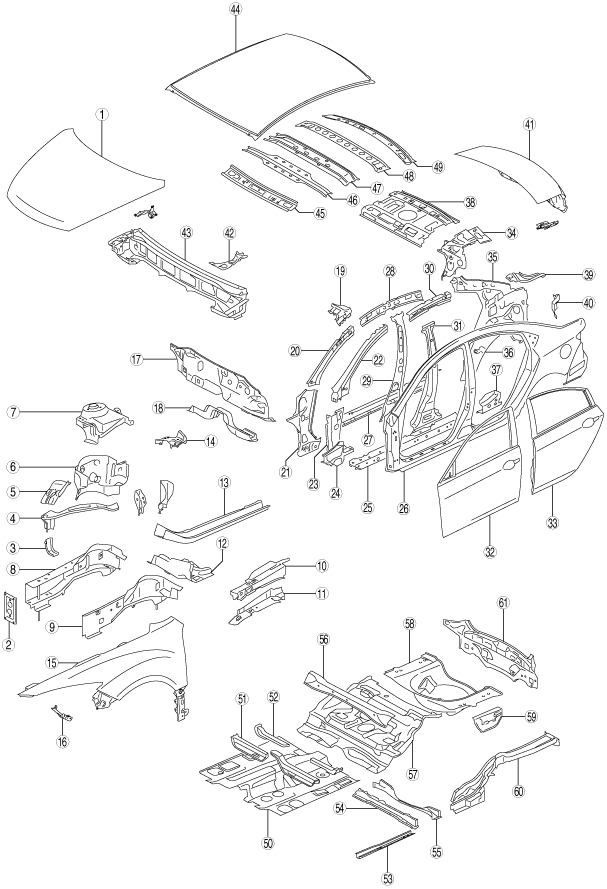

am6zzb00000030

NO.	Part Name		Ultra high-tension steel	High-tension steel	Rust proof steel	Thickness (mm {in})
1	Bonnet		—	×	×	0.7 {0.03}
2	Front bumper bracket		×	—	—	2.9 {0.11}
3	Shroud side panel		—	—	×	2.0 {0.079}
4	Shroud side member		—	—	×	1.2 {0.047}
5	Wheel apron (front)		—	—	×	0.65 {0.026}
6	Wheel housing (lower)		—	—	×	1.2 {0.047}
7	Wheel housing (upper)		—	×	×	2.9 {0.11}
8	Front side frame (inner)	Front	×	—	×	1.6 {0.063}
		Rear	—	×	×	2.3 {0.091}
9	Front side frame (outer)		—	×	×	1.6 {0.063}
10	Apron reinforcement (upper)		—	—	×	1.0 {0.039}
11	Apron reinforcement (lower)		—	×	×	1.2 {0.047}
12	Torque box		—	—	×	1.4 {0.055}
13	Front frame reinforcement (rear)		×	—	×	2.0 {0.079}
14	Wheel apron reinforcement (front)		—	—	×	1.4 {0.055}
15	Front fender panel		—	×	×	0.8 {0.03}
16	Front fender stay		—	—	×	1.4 {0.055}
17	Dash lower panel		—	—	×	0.85 {0.033}
18	Dash lower member		—	—	×	1.6 {0.063}
19	Front pillar reinforcement		—	—	—	1.4 {0.055}
20	Front pillar (inner)		×	—	—	1.6 {0.063}
21	Hinge pillar (inner)		×	—	×	1.2 {0.047}
22	Front pillar reinforcement (upper)		×	—	—	1.6 {0.063}
23	Hinge reinforcement		×	—	×	1.6 {0.063}
24	Cowl side reinforcement		—	×	×	1.2 {0.047}
25	Side sill reinforcement		×	—	×	1.4 {0.055}
26	Side frame (outer)		—	—	×	0.7 {0.03}
27	Side sill (inner)		×	—	×	1.6 {0.063}
28	Roof rail (inner, rear)		×	—	—	1.4 {0.055}
29	B-pillar (inner)		×	—	×	1.2 {0.047}
30	Roof rail reinforcement		×	—	—	1.6 {0.063}
31	B-pillar reinforcement	Upper	×	—	—	1.6 {0.063}
		Center	×	—	—	1.8 {0.071}
		Lower	—	×	—	1.2 {0.047}
32	Front door panel (outer)		—	×	×	0.7 {0.03}
33	Rear door panel (outer)		—	×	×	0.65 {0.026}
34	Bulkhead junction		—	—	—	0.7 {0.03}
35	Rear pillar (inner)		—	—	—	0.65 {0.026}
36	Wheel house (inner)		—	—	×	0.75 {0.030}
37	Side sill reinforcement (rear)		—	×	×	1.6 {0.063}
38	Package tray		—	—	—	0.6 {0.02}
39	Rear fender rain rail		—	—	×	0.7 {0.03}
40	Corner plate		—	—	×	0.7 {0.03}
41	Trunk lid panel (outer)		—	×	×	0.65 {0.026}
42	Wiper bracket		—	—	×	1.6 {0.063}
43	Dash upper panel		—	—	×	0.9 {0.04}
44	Roof panel		—	—	—	0.75 {0.030}
45	Front header		—	—	—	0.7 {0.03}
46	Roof reinforcement (front)		—	—	—	0.55 {0.022}
47	Roof reinforcement (center)		×	—	—	1.0 {0.039}
48	Roof reinforcement (rear)		—	—	—	0.55 {0.022}
49	Rear header		—	—	—	0.65 {0.026}
50	Front floor pan		—	—	×	0.6 {0.02}
51	Crossmember No.2		—	—	—	1.2 {0.047}
52	Front seat bracket		—	×	—	1.4 {0.055}
53	Front B frame		×	—	×	1.2 {0.047}
54	Crossmember No.4 (front)		—	—	×	1.2 {0.047}
55	Crossmember No.4 (rear)		—	—	×	0.9 {0.04}
56	Crossmember No.3		—	×	—	1.4 {0.055}
57	Center floor pan		—	—	×	0.6 {0.02}
58	Rear floor pan		—	—	×	0.65 {0.026}
59	Floor side panel		—	—	×	0.6 {0.02}
60	Rear side frame	Front	—	×	×	1.8 {0.071}
		Rear	—	×	×	1.8 {0.071}
61	Rear end panel		—	—	×	0.65 {0.026}

U.K. specs.

am6zzb00000031

NO.	Part Name		Ultra high-tension steel	High-tension steel	Rust proof steel	Thickness (mm {in})
1	Bonnet		—	×	×	0.7 {0.03}
2	Front bumper bracket		×	—	—	2.9 {0.11}
3	Shroud side panel		—	—	×	2.0 {0.079}
4	Shroud side member		—	—	×	1.2 {0.047}
5	Wheel apron (front)		—	—	×	0.65 {0.026}
6	Wheel housing (lower)		—	—	×	1.2 {0.047}
7	Wheel housing (upper)		—	×	×	2.9 {0.11}
8	Front side frame (inner)	Front	×	—	×	1.6 {0.063}
		Rear	—	×	×	2.3 {0.091}
9	Front side frame (outer)		—	×	×	1.6 {0.063}
10	Apron reinforcement (upper)		—	—	×	1.0 {0.039}
11	Apron reinforcement (lower)		—	×	×	1.2 {0.047}
12	Torque box		—	—	×	1.4 {0.055}
13	Front frame reinforcement (rear)		×	—	×	2.0 {0.079}
14	Wheel apron reinforcement (front)		—	—	×	1.4 {0.055}
15	Front fender panel		—	×	×	0.8 {0.03}
16	Front fender stay		—	—	×	1.4 {0.055}
17	Dash lower panel		—	—	×	0.85 {0.033}
18	Dash lower member		—	—	×	1.6 {0.063}
19	Front pillar reinforcement		—	—	—	1.4 {0.055}
20	Front pillar (inner)		×	—	—	1.6 {0.063}
21	Hinge pillar (inner)		×	—	×	1.2 {0.047}
22	Front pillar reinforcement (upper)		×	—	—	1.6 {0.063}
23	Hinge reinforcement		×	—	×	1.6 {0.063}
24	Cowl side reinforcement		—	×	×	1.2 {0.047}
25	Side sill reinforcement		×	—	×	1.4 {0.055}
26	Side frame (outer)		—	—	×	0.7 {0.03}
27	Side sill (inner)		×	—	×	1.6 {0.063}
28	Roof rail (inner, rear)		×	—	—	1.4 {0.055}
29	B-pillar (inner)		×	—	×	1.2 {0.047}
30	Roof rail reinforcement		×	—	—	1.6 {0.063}
31	B-pillar reinforcement	Upper	×	—	—	1.6 {0.063}
		Center	×	—	—	1.8 {0.071}
		Lower	—	×	—	1.2 {0.047}
32	Front door panel (outer)		—	×	×	0.7 {0.03}
33	Rear door panel (outer)		—	×	×	0.65 {0.026}
34	Bulkhead junction		—	—	—	0.7 {0.03}
35	Rear pillar (inner)		—	—	—	0.65 {0.026}
36	Wheel house (inner)		—	—	×	0.75 {0.030}
37	Side sill reinforcement (rear)		—	—	×	1.0 {0.039}
38	Package tray		—	—	—	0.6 {0.02}
39	Rear fender rain rail		—	—	×	0.7 {0.03}
40	Corner plate		—	—	×	0.7 {0.03}
41	Trunk lid panel (outer)		—	×	×	0.65 {0.026}
42	Wiper bracket		—	—	×	1.6 {0.063}
43	Dash upper panel		—	—	×	0.9 {0.04}
44	Roof panel		—	—	—	0.75 {0.030}
45	Front header		—	—	—	0.7 {0.03}
46	Roof reinforcement (front)		—	—	—	0.55 {0.022}
47	Roof reinforcement (center)		×	—	—	1.0 {0.039}
48	Roof reinforcement (rear)		—	—	—	0.55 {0.022}
49	Rear header		—	—	—	0.65 {0.026}
50	Front floor pan		—	—	×	0.6 {0.02}
51	Crossmember No.2		—	—	—	1.2 {0.047}
52	Front seat bracket		—	×	—	1.4 {0.055}
53	Front B frame		×	—	×	1.2 {0.047}
54	Crossmember No.4 (front)		—	—	×	1.2 {0.047}
55	Crossmember No.4 (rear)		—	—	×	0.9 {0.04}
56	Crossmember No.3		—	×	—	1.4 {0.055}
57	Center floor pan		—	—	×	0.6 {0.02}
58	Rear floor pan		—	—	×	0.65 {0.026}
59	Floor side panel		—	—	×	0.6 {0.02}
60	Rear side frame	Front	—	×	×	1.8 {0.071}
		Rear	—	×	×	1.8 {0.071}
61	Rear end panel		—	—	×	0.65 {0.026}

Australian, General (R.H.D.) specs.

am6zzb00000031

NO.	Part Name		Ultra high-tension steel	High-tension steel	Rust proof steel	Thickness (mm {in})
1	Bonnet		—	×	×	0.7 {0.03}
2	Front bumper bracket		×	—	—	2.9 {0.11}
3	Shroud side panel		—	—	×	2.0 {0.079}
4	Shroud side member		—	—	×	1.2 {0.047}
5	Wheel apron (front)		—	—	×	0.65 {0.026}
6	Wheel housing (lower)		—	—	×	1.2 {0.047}
7	Wheel housing (upper)		—	×	×	2.9 {0.11}
8	Front side frame (inner)	Front	×	—	×	1.6 {0.063}
		Rear	—	×	×	2.3 {0.091}
9	Front side frame (outer)		—	×	×	1.6 {0.063}
10	Apron reinforcement (upper)		—	—	×	1.0 {0.039}
11	Apron reinforcement (lower)		—	×	×	1.2 {0.047}
12	Torque box		—	—	×	1.4 {0.055}
13	Front frame reinforcement (rear)		×	—	×	2.0 {0.079}
14	Wheel apron reinforcement (front)		—	—	×	1.4 {0.055}
15	Front fender panel		—	×	×	0.8 {0.03}
16	Front fender stay		—	—	×	1.4 {0.055}
17	Dash lower panel		—	—	×	0.85 {0.033}
18	Dash lower member		—	—	×	1.6 {0.063}
19	Front pillar reinforcement		—	—	—	1.4 {0.055}
20	Front pillar (inner)		×	—	—	1.6 {0.063}
21	Hinge pillar (inner)		×	—	×	1.2 {0.047}
22	Front pillar reinforcement (upper)		×	—	—	1.6 {0.063}
23	Hinge reinforcement		×	—	×	1.6 {0.063}
24	Cowl side reinforcement		—	×	×	1.2 {0.047}
25	Side sill reinforcement		×	—	×	1.4 {0.055}
26	Side frame (outer)		—	—	×	0.7 {0.03}
27	Side sill (inner)		×	—	×	1.6 {0.063}
28	Roof rail (inner, rear)		×	—	—	1.4 {0.055}
29	B-pillar (inner)		×	—	×	1.2 {0.047}
30	Roof rail reinforcement		×	—	—	1.6 {0.063}
31	B-pillar reinforcement	Upper	×	—	—	1.6 {0.063}
		Center	×	—	—	1.8 {0.071}
		Lower	—	×	—	1.2 {0.047}
32	Front door panel (outer)		—	×	×	0.7 {0.03}
33	Rear door panel (outer)		—	×	×	0.65 {0.026}
34	Bulkhead junction		—	—	—	0.7 {0.03}
35	Rear pillar (inner)		—	—	—	0.65 {0.026}
36	Wheel house (inner)		—	—	×	0.75 {0.030}
37	Side sill reinforcement (rear)		—	—	×	1.0 {0.039}
38	Package tray		—	—	—	0.6 {0.02}
39	Rear fender rain rail		—	—	×	0.7 {0.03}
40	Corner plate		—	—	×	0.7 {0.03}
41	Trunk lid panel (outer)		—	×	×	0.65 {0.026}
42	Wiper bracket		—	—	×	1.6 {0.063}
43	Dash upper panel		—	—	×	0.9 {0.04}
44	Roof panel		—	—	—	0.75 {0.030}
45	Front header		—	—	—	0.7 {0.03}
46	Roof reinforcement (front)		—	—	—	0.55 {0.022}
47	Roof reinforcement (center)		×	—	—	1.0 {0.039}
48	Roof reinforcement (rear)		—	—	—	0.55 {0.022}
49	Rear header		—	—	—	0.65 {0.026}
50	Front floor pan		—	—	—	0.6 {0.02}
51	Crossmember No.2		—	—	—	1.2 {0.047}
52	Front seat bracket		—	×	—	1.4 {0.055}
53	Front B frame		×	—	—	1.2 {0.047}
54	Crossmember No.4 (front)		—	—	×	1.2 {0.047}
55	Crossmember No.4 (rear)		—	—	×	0.9 {0.04}
56	Crossmember No.3		—	×	—	1.4 {0.055}
57	Center floor pan		—	—	—	0.6 {0.02}
58	Rear floor pan		—	—	—	0.65 {0.026}
59	Floor side panel		—	—	×	0.6 {0.02}
60	Rear side frame	Front	—	×	×	1.8 {0.071}
		Rear	—	×	×	1.8 {0.071}
61	Rear end panel		—	—	×	0.65 {0.026}

General (L.H.D.) specs.

am6zzb00000030

NO.	Part Name		Ultra high-tension steel	High-tension steel	Rust proof steel	Thickness (mm {in})
1	Bonnet		—	×	×	0.7 {0.03}
2	Front bumper bracket		×	—	—	2.9 {0.11}
3	Shroud side panel		—	—	×	2.0 {0.079}
4	Shroud side member		—	—	×	1.2 {0.047}
5	Wheel apron (front)		—	—	×	0.65 {0.026}
6	Wheel housing (lower)		—	—	×	1.2 {0.047}
7	Wheel housing (upper)		—	×	×	2.9 {0.11}
8	Front side frame (inner)	Front	×	—	×	1.6 {0.063}
		Rear	—	×	×	2.3 {0.091}
9	Front side frame (outer)		—	×	×	1.6 {0.063}
10	Apron reinforcement (upper)		—	—	×	1.0 {0.039}
11	Apron reinforcement (lower)		—	×	×	1.2 {0.047}
12	Torque box		—	—	×	1.4 {0.055}
13	Front frame reinforcement (rear)		×	—	×	2.0 {0.079}
14	Wheel apron reinforcement (front)		—	—	×	1.4 {0.055}
15	Front fender panel		—	×	×	0.8 {0.03}
16	Front fender stay		—	—	×	1.4 {0.055}
17	Dash lower panel		—	—	×	0.85 {0.033}
18	Dash lower member		—	—	×	1.6 {0.063}
19	Front pillar reinforcement		—	—	—	1.4 {0.055}
20	Front pillar (inner)		×	—	—	1.6 {0.063}
21	Hinge pillar (inner)		×	—	×	1.2 {0.047}
22	Front pillar reinforcement (upper)		×	—	—	1.6 {0.063}
23	Hinge reinforcement		×	—	×	1.6 {0.063}
24	Cowl side reinforcement		—	×	×	1.2 {0.047}
25	Side sill reinforcement		×	—	×	1.4 {0.055}
26	Side frame (outer)		—	—	×	0.7 {0.03}
27	Side sill (inner)		×	—	×	1.6 {0.063}
28	Roof rail (inner, rear)		×	—	—	1.4 {0.055}
29	B-pillar (inner)		×	—	×	1.2 {0.047}
30	Roof rail reinforcement		×	—	—	1.6 {0.063}
31	B-pillar reinforcement	Upper	×	—	—	1.6 {0.063}
		Center	×	—	—	1.8 {0.071}
		Lower	—	×	—	1.2 {0.047}
32	Front door panel (outer)		—	×	×	0.7 {0.03}
33	Rear door panel (outer)		—	×	×	0.65 {0.026}
34	Bulkhead junction		—	—	—	0.7 {0.03}
35	Rear pillar (inner)		—	—	—	0.65 {0.026}
36	Wheel house (inner)		—	—	×	0.75 {0.030}
37	Side sill reinforcement (rear)		—	×	×	1.6 {0.063}
38	Package tray		—	—	—	0.6 {0.02}
39	Rear fender rain rail		—	—	×	0.7 {0.03}
40	Corner plate		—	—	×	0.7 {0.03}
41	Trunk lid panel (outer)		—	×	×	0.65 {0.026}
42	Wiper bracket		—	—	×	1.6 {0.063}
43	Dash upper panel		—	—	×	0.9 {0.04}
44	Roof panel		—	—	—	0.75 {0.030}
45	Front header		—	—	—	0.7 {0.03}
46	Roof reinforcement (front)		—	—	—	0.55 {0.022}
47	Roof reinforcement (center)		×	—	—	1.0 {0.039}
48	Roof reinforcement (rear)		—	—	—	0.55 {0.022}
49	Rear header		—	—	—	0.65 {0.026}
50	Front floor pan		—	—	—	0.6 {0.02}
51	Crossmember No.2		—	—	—	1.2 {0.047}
52	Front seat bracket		—	×	—	1.4 {0.055}
53	Front B frame		×	—	—	1.2 {0.047}
54	Crossmember No.4 (front)		—	—	×	1.2 {0.047}
55	Crossmember No.4 (rear)		—	—	×	0.9 {0.04}
56	Crossmember No.3		—	×	—	1.4 {0.055}
57	Center floor pan		—	—	—	0.6 {0.02}
58	Rear floor pan		—	—	—	0.65 {0.026}
59	Floor side panel		—	—	×	0.6 {0.02}
60	Rear side frame	Front	—	×	×	1.8 {0.071}
		Rear	—	×	×	1.8 {0.071}
61	Rear end panel		—	—	×	0.65 {0.026}

5HB

European (L.H.D.) specs.

am6zzb00000231

NO.	Part Name		Ultra high-tension steel	High-tension steel	Rust proof steel	Thickness (mm {in})
1	Bonnet		—	×	×	0.7 {0.03}
2	Front bumper bracket		×	—	—	2.9 {0.11}
3	Shroud side panel		—	—	×	2.0 {0.079}
4	Shroud side member		—	—	×	1.2 {0.047}
5	Wheel apron (front)		—	—	×	0.65 {0.026}
6	Wheel housing (lower)		—	—	×	1.2 {0.047}
7	Wheel housing (upper)		—	×	×	2.9 {0.11}
8	Front side frame (inner)	Front	×	—	×	1.6 {0.063}
		Rear	—	×	×	2.3 {0.091}
9	Front side frame (outer)		—	×	×	1.6 {0.063}
10	Apron reinforcement (upper)		—	—	×	1.0 {0.039}
11	Apron reinforcement (lower)		—	×	×	1.2 {0.047}
12	Torque box		—	—	×	1.4 {0.055}
13	Front frame reinforcement (rear)		×	—	×	2.0 {0.079}
14	Wheel apron reinforcement (front)		—	—	×	1.4 {0.055}
15	Front fender panel		—	×	×	0.8 {0.03}
16	Front fender stay		—	—	×	1.4 {0.055}
17	Dash lower panel		—	—	×	0.85 {0.033}
18	Dash lower member		—	—	×	1.6 {0.063}
19	Front pillar reinforcement		—	—	—	1.4 {0.055}
20	Front pillar (inner)		×	—	—	1.6 {0.063}
21	Hinge pillar (inner)		×	—	×	1.2 {0.047}
22	Front pillar reinforcement (upper)		×	—	—	1.6 {0.063}
23	Hinge reinforcement		×	—	×	1.6 {0.063}
24	Cowl side reinforcement		—	×	×	1.2 {0.047}
25	Side sill reinforcement		×	—	×	1.4 {0.055}
26	Side frame (outer)		—	—	×	0.7 {0.03}
27	Side sill (inner)		×	—	×	1.6 {0.063}
28	Roof rail (inner, rear)		×	—	—	1.4 {0.055}
29	B-pillar (inner)		×	—	×	1.2 {0.047}
30	Roof rail reinforcement		×	—	—	1.6 {0.063}
31	B-pillar reinforcement	Upper	×	—	—	1.6 {0.063}
		Center	×	—	—	1.8 {0.071}
		Lower	—	×	—	1.2 {0.047}
32	Front door panel (outer)		—	×	×	0.7 {0.03}
33	Rear door panel (outer)		—	×	×	0.65 {0.026}
34	Rear pillar (inner)		—	—	—	0.65 {0.026}
35	Wheel house (inner)		—	—	×	0.75 {0.030}
36	Side sill reinforcement (rear)		—	×	×	1.6 {0.063}
37	Rear pillar (outer)		—	—	×	0.8 {0.03}
38	Corner plate		—	—	×	0.7 {0.03}
39	Liftgate panel (outer)		—	—	×	0.75 {0.030}
40	Wiper bracket		—	—	×	1.6 {0.063}
41	Dash upper panel		—	—	×	0.9 {0.04}
42	Roof panel		—	—	—	0.75 {0.030}
43	Front header		—	—	—	0.7 {0.03}
44	Roof reinforcement (front)		—	—	—	0.55 {0.022}
45	Roof reinforcement (center)		×	—	—	1.0 {0.039}
46	Roof reinforcement (rear)		—	—	—	0.55 {0.022}
47	Rear header	Upper	—	—	—	0.7 {0.03}
		Lower	—	—	—	0.7 {0.03}
48	Front floor pan		—	—	×	0.6 {0.02}
49	Crossmember No.2		—	—	—	1.2 {0.047}
50	Front seat bracket		—	×	—	1.4 {0.055}
51	Front B frame		×	—	×	1.2 {0.047}
52	Crossmember No.4 (front)		—	—	×	1.2 {0.047}
53	Crossmember No.4 (rear)		—	—	×	0.9 {0.04}
54	Crossmember No.3		—	×	—	1.4 {0.055}
55	Center floor pan		—	—	×	0.6 {0.02}
56	Rear floor pan		—	—	×	0.65 {0.026}
57	Floor side panel		—	—	×	0.6 {0.02}
58	Rear side frame	Front	—	×	×	1.8 {0.071}
		Rear	—	×	×	1.8 {0.071}
59	Rear end panel		—	—	×	0.65 {0.026}

U.K. specs.

am6zzb00000232

NO.	Part Name		Ultra high-tension steel	High-tension steel	Rust proof steel	Thickness (mm {in})
1	Bonnet		—	×	×	0.7 {0.03}
2	Front bumper bracket		×	—	—	2.9 {0.11}
3	Shroud side panel		—	—	×	2.0 {0.079}
4	Shroud side member		—	—	×	1.2 {0.047}
5	Wheel apron (front)		—	—	×	0.65 {0.026}
6	Wheel housing (lower)		—	—	×	1.2 {0.047}
7	Wheel housing (upper)		—	×	×	2.9 {0.11}
8	Front side frame (inner)	Front	×	—	×	1.6 {0.063}
		Rear	—	×	×	2.3 {0.091}
9	Front side frame (outer)		—	×	×	1.6 {0.063}
10	Apron reinforcement (upper)		—	—	×	1.0 {0.039}
11	Apron reinforcement (lower)		—	×	×	1.2 {0.047}
12	Torque box		—	—	×	1.4 {0.055}
13	Front frame reinforcement (rear)		×	—	×	2.0 {0.079}
14	Wheel apron reinforcement (front)		—	—	×	1.4 {0.055}
15	Front fender panel		—	×	×	0.8 {0.03}
16	Front fender stay		—	—	×	1.4 {0.055}
17	Dash lower panel		—	—	×	0.85 {0.033}
18	Dash lower member		—	—	×	1.6 {0.063}
19	Front pillar reinforcement		—	—	—	1.4 {0.055}
20	Front pillar (inner)		×	—	—	1.6 {0.063}
21	Hinge pillar (inner)		×	—	×	1.2 {0.047}
22	Front pillar reinforcement (upper)		×	—	—	1.6 {0.063}
23	Hinge reinforcement		×	—	×	1.6 {0.063}
24	Cowl side reinforcement		—	×	×	1.2 {0.047}
25	Side sill reinforcement		×	—	×	1.4 {0.055}
26	Side frame (outer)		—	—	×	0.7 {0.03}
27	Side sill (inner)		×	—	×	1.6 {0.063}
28	Roof rail (inner, rear)		×	—	—	1.4 {0.055}
29	B-pillar (inner)		×	—	×	1.2 {0.047}
30	Roof rail reinforcement		×	—	—	1.6 {0.063}
31	B-pillar reinforcement	Upper	×	—	—	1.6 {0.063}
		Center	×	—	—	1.8 {0.071}
		Lower	—	×	—	1.2 {0.047}
32	Front door panel (outer)		—	×	×	0.7 {0.03}
33	Rear door panel (outer)		—	×	×	0.65 {0.026}
34	Rear pillar (inner)		—	—	—	0.65 {0.026}
35	Wheel house (inner)		—	—	×	0.75 {0.030}
36	Side sill reinforcement (rear)		—	×	×	1.6 {0.063}
37	Rear pillar (outer)		—	—	×	0.8 {0.03}
38	Corner plate		—	—	×	0.7 {0.03}
39	Liftgate panel (outer)		—	—	×	0.75 {0.030}
40	Wiper bracket		—	—	×	1.6 {0.063}
41	Dash upper panel		—	—	×	0.9 {0.04}
42	Roof panel		—	—	—	0.75 {0.030}
43	Front header		—	—	—	0.7 {0.03}
44	Roof reinforcement (front)		—	—	—	0.55 {0.022}
45	Roof reinforcement (center)		×	—	—	1.0 {0.039}
46	Roof reinforcement (rear)		—	—	—	0.55 {0.022}
47	Rear header	Upper	—	—	—	0.7 {0.03}
		Lower	—	—	—	0.7 {0.03}
48	Front floor pan		—	—	×	0.6 {0.02}
49	Crossmember No.2		—	—	—	1.2 {0.047}
50	Front seat bracket		—	×	—	1.4 {0.055}
51	Front B frame		×	—	×	1.2 {0.047}
52	Crossmember No.4 (front)		—	—	×	1.2 {0.047}
53	Crossmember No.4 (rear)		—	—	×	0.9 {0.04}
54	Crossmember No.3		—	×	—	1.4 {0.055}
55	Center floor pan		—	—	×	0.6 {0.02}
56	Rear floor pan		—	—	×	0.65 {0.026}
57	Floor side panel		—	—	×	0.6 {0.02}
58	Rear side frame	Front	—	×	×	1.8 {0.071}
		Rear	—	×	×	1.8 {0.071}
59	Rear end panel		—	—	×	0.65 {0.026}

Australian, General (R.H.D.) specs.

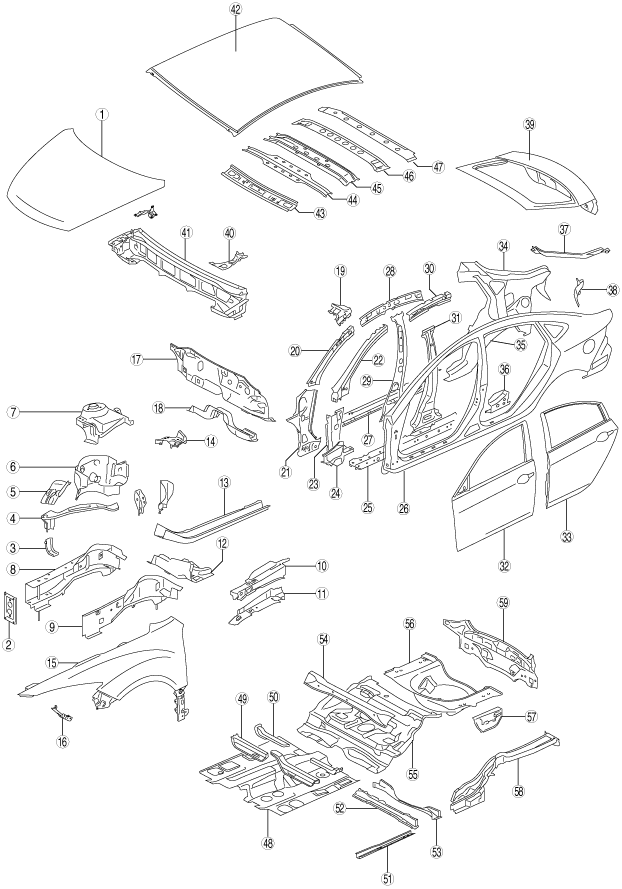

am6zzb00000233

NO.	Part Name		Ultra high-tension steel	High-tension steel	Rust proof steel	Thickness (mm {in})
1	Bonnet		—	×	×	0.7 {0.03}
2	Front bumper bracket		×	—	—	2.9 {0.11}
3	Shroud side panel		—	—	×	2.0 {0.079}
4	Shroud side member		—	—	×	1.2 {0.047}
5	Wheel apron (front)		—	—	×	0.65 {0.026}
6	Wheel housing (lower)		—	—	×	1.2 {0.047}
7	Wheel housing (upper)		—	×	×	2.9 {0.11}
8	Front side frame (inner)	Front	×	—	×	1.6 {0.063}
		Rear	—	×	×	2.3 {0.091}
9	Front side frame (outer)		—	×	×	1.6 {0.063}
10	Apron reinforcement (upper)		—	—	×	1.0 {0.039}
11	Apron reinforcement (lower)		—	×	×	1.2 {0.047}
12	Torque box		—	—	×	1.4 {0.055}
13	Front frame reinforcement (rear)		×	—	×	2.0 {0.079}
14	Wheel apron reinforcement (front)		—	—	×	1.4 {0.055}
15	Front fender panel		—	×	×	0.8 {0.03}
16	Front fender stay		—	—	×	1.4 {0.055}
17	Dash lower panel		—	—	×	0.85 {0.033}
18	Dash lower member		—	—	×	1.6 {0.063}
19	Front pillar reinforcement		—	—	—	1.4 {0.055}
20	Front pillar (inner)		×	—	—	1.6 {0.063}
21	Hinge pillar (inner)		×	—	×	1.2 {0.047}
22	Front pillar reinforcement (upper)		×	—	—	1.6 {0.063}
23	Hinge reinforcement		×	—	×	1.6 {0.063}
24	Cowl side reinforcement		—	×	×	1.2 {0.047}
25	Side sill reinforcement		×	—	×	1.4 {0.055}
26	Side frame (outer)		—	—	×	0.7 {0.03}
27	Side sill (inner)		×	—	×	1.6 {0.063}
28	Roof rail (inner, rear)		×	—	—	1.4 {0.055}
29	B-pillar (inner)		×	—	×	1.2 {0.047}
30	Roof rail reinforcement		×	—	—	1.6 {0.063}
31	B-pillar reinforcement	Upper	×	—	—	1.6 {0.063}
		Center	×	—	—	1.8 {0.071}
		Lower	—	×	—	1.2 {0.047}
32	Front door panel (outer)		—	×	×	0.7 {0.03}
33	Rear door panel (outer)		—	×	×	0.65 {0.026}
34	Rear pillar (inner)		—	—	—	0.65 {0.026}
35	Wheel house (inner)		—	—	×	0.75 {0.030}
36	Side sill reinforcement (rear)		—	×	×	1.6 {0.063}
37	Rear pillar (outer)		—	—	×	0.8 {0.03}
38	Corner plate		—	—	×	0.7 {0.03}
39	Liftgate panel (outer)		—	—	×	0.75 {0.030}
40	Wiper bracket		—	—	×	1.6 {0.063}
41	Dash upper panel		—	—	×	0.9 {0.04}
42	Roof panel		—	—	—	0.75 {0.030}
43	Front header		—	—	—	0.7 {0.03}
44	Roof reinforcement (front)		—	—	—	0.55 {0.022}
45	Roof reinforcement (center)		×	—	—	1.0 {0.039}
46	Roof reinforcement (rear)		—	—	—	0.55 {0.022}
47	Rear header	Upper	—	—	—	0.7 {0.03}
		Lower	—	—	—	0.7 {0.03}
48	Front floor pan		—	—	—	0.6 {0.02}
49	Crossmember No.2		—	—	—	1.2 {0.047}
50	Front seat bracket		—	×	—	1.4 {0.055}
51	Front B frame		×	—	—	1.2 {0.047}
52	Crossmember No.4 (front)		—	—	×	1.2 {0.047}
53	Crossmember No.4 (rear)		—	—	×	0.9 {0.04}
54	Crossmember No.3		—	×	—	1.4 {0.055}
55	Center floor pan		—	—	—	0.6 {0.02}
56	Rear floor pan		—	—	—	0.65 {0.026}
57	Floor side panel		—	—	×	0.6 {0.02}
58	Rear side frame	Front	—	×	×	1.8 {0.071}
		Rear	—	×	×	1.8 {0.071}
59	Rear end panel		—	—	×	0.65 {0.026}

General (L.H.D.) specs.

am6zzb00000234

NO.	Part Name		Ultra high-tension steel	High-tension steel	Rust proof steel	Thickness (mm {in})
1	Bonnet		—	×	×	0.7 {0.03}
2	Front bumper bracket		×	—	—	2.9 {0.11}
3	Shroud side panel		—	—	×	2.0 {0.079}
4	Shroud side member		—	—	×	1.2 {0.047}
5	Wheel apron (front)		—	—	×	0.65 {0.026}
6	Wheel housing (lower)		—	—	×	1.2 {0.047}
7	Wheel housing (upper)		—	×	×	2.9 {0.11}
8	Front side frame (inner)	Front	×	—	×	1.6 {0.063}
		Rear	—	×	×	2.3 {0.091}
9	Front side frame (outer)		—	×	×	1.6 {0.063}
10	Apron reinforcement (upper)		—	—	×	1.0 {0.039}
11	Apron reinforcement (lower)		—	×	×	1.2 {0.047}
12	Torque box		—	—	×	1.4 {0.055}
13	Front frame reinforcement (rear)		×	—	×	2.0 {0.079}
14	Wheel apron reinforcement (front)		—	—	×	1.4 {0.055}
15	Front fender panel		—	×	×	0.8 {0.03}
16	Front fender stay		—	—	×	1.4 {0.055}
17	Dash lower panel		—	—	×	0.85 {0.033}
18	Dash lower member		—	—	×	1.6 {0.063}
19	Front pillar reinforcement		—	—	—	1.4 {0.055}
20	Front pillar (inner)		×	—	—	1.6 {0.063}
21	Hinge pillar (inner)		×	—	×	1.2 {0.047}
22	Front pillar reinforcement (upper)		×	—	—	1.6 {0.063}
23	Hinge reinforcement		×	—	×	1.6 {0.063}
24	Cowl side reinforcement		—	×	×	1.2 {0.047}
25	Side sill reinforcement		×	—	×	1.4 {0.055}
26	Side frame (outer)		—	—	×	0.7 {0.03}
27	Side sill (inner)		×	—	×	1.6 {0.063}
28	Roof rail (inner, rear)		×	—	—	1.4 {0.055}
29	B-pillar (inner)		×	—	×	1.2 {0.047}
30	Roof rail reinforcement		×	—	—	1.6 {0.063}
31	B-pillar reinforcement	Upper	×	—	—	1.6 {0.063}
		Center	×	—	—	1.8 {0.071}
		Lower	—	×	—	1.2 {0.047}
32	Front door panel (outer)		—	×	×	0.7 {0.03}
33	Rear door panel (outer)		—	×	×	0.65 {0.026}
34	Rear pillar (inner)		—	—	—	0.65 {0.026}
35	Wheel house (inner)		—	—	×	0.75 {0.030}
36	Side sill reinforcement (rear)		—	×	×	1.6 {0.063}
37	Rear pillar (outer)		—	—	×	0.8 {0.03}
38	Corner plate		—	—	×	0.7 {0.03}
39	Liftgate panel (outer)		—	—	×	0.75 {0.030}
40	Wiper bracket		—	—	×	1.6 {0.063}
41	Dash upper panel		—	—	×	0.9 {0.04}
42	Roof panel		—	—	—	0.75 {0.030}
43	Front header		—	—	—	0.7 {0.03}
44	Roof reinforcement (front)		—	—	—	0.55 {0.022}
45	Roof reinforcement (center)		×	—	—	1.0 {0.039}
46	Roof reinforcement (rear)		—	—	—	0.55 {0.022}
47	Rear header	Upper	—	—	—	0.7 {0.03}
		Lower	—	—	—	0.7 {0.03}
48	Front floor pan		—	—	—	0.6 {0.02}
49	Crossmember No.2		—	—	—	1.2 {0.047}
50	Front seat bracket		—	×	—	1.4 {0.055}
51	Front B frame		×	—	—	1.2 {0.047}
52	Crossmember No.4 (front)		—	—	×	1.2 {0.047}
53	Crossmember No.4 (rear)		—	—	×	0.9 {0.04}
54	Crossmember No.3		—	×	—	1.4 {0.055}
55	Center floor pan		—	—	—	0.6 {0.02}
56	Rear floor pan		—	—	—	0.65 {0.026}
57	Floor side panel		—	—	×	0.6 {0.02}
58	Rear side frame	Front	—	×	×	1.8 {0.071}
		Rear	—	×	×	1.8 {0.071}
59	Rear end panel		—	—	×	0.65 {0.026}

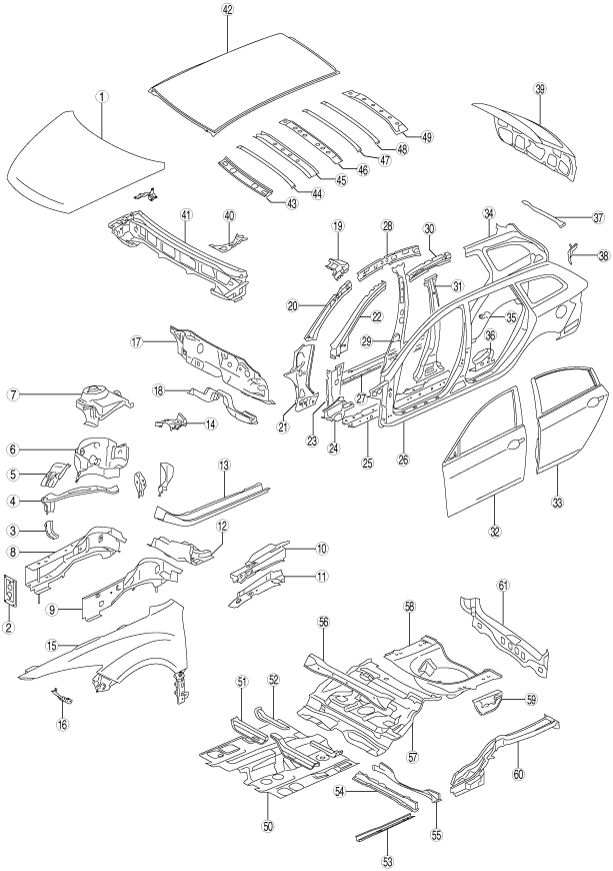

Wagon

European (L.H.D.) specs.

am6zzb00000235

NO.	Part Name		Ultra high-tension steel	High-tension steel	Rust proof steel	Thickness (mm {in})
1	Bonnet		—	×	×	0.7 {0.03}
2	Front bumper bracket		×	—	—	2.9 {0.11}
3	Shroud side panel		—	—	×	2.0 {0.079}
4	Shroud side member		—	—	×	1.2 {0.047}
5	Wheel apron (front)		—	—	×	0.65 {0.026}
6	Wheel housing (lower)		—	—	×	1.2 {0.047}
7	Wheel housing (upper)		—	×	×	2.9 {0.11}
8	Front side frame (inner)	Front	×	—	×	1.6 {0.063}
		Rear	—	×	×	2.3 {0.091}
9	Front side frame (outer)		—	×	×	1.6 {0.063}
10	Apron reinforcement (upper)		—	—	×	1.0 {0.039}
11	Apron reinforcement (lower)		—	×	×	1.2 {0.047}
12	Torque box		—	—	×	1.4 {0.055}
13	Front frame reinforcement (rear)		×	—	×	2.0 {0.079}
14	Wheel apron reinforcement (front)		—	—	×	1.4 {0.055}
15	Front fender panel		—	×	×	0.8 {0.03}
16	Front fender stay		—	—	×	1.4 {0.055}
17	Dash lower panel		—	—	×	0.85 {0.033}
18	Dash lower member		—	—	×	1.6 {0.063}
19	Front pillar reinforcement		—	—	—	1.4 {0.055}
20	Front pillar (inner)		×	—	—	1.6 {0.063}
21	Hinge pillar (inner)		×	—	×	1.2 {0.047}
22	Front pillar reinforcement (upper)		×	—	—	1.6 {0.063}
23	Hinge reinforcement		×	—	×	1.6 {0.063}
24	Cowl side reinforcement		—	×	×	1.2 {0.047}
25	Side sill reinforcement		×	—	×	1.4 {0.055}
26	Side frame (outer)		—	—	×	0.7 {0.03}
27	Side sill (inner)		×	—	×	1.6 {0.063}
28	Roof rail (inner, rear)		×	—	—	1.4 {0.055}
29	B-pillar (inner)		×	—	×	1.2 {0.047}
30	Roof rail reinforcement		×	—	—	1.6 {0.063}
31	B-pillar reinforcement	Upper	×	—	—	1.6 {0.063}
		Center	×	—	—	1.8 {0.071}
		Lower	—	×	—	1.2 {0.047}
32	Front door panel (outer)		—	×	×	0.7 {0.03}
33	Rear door panel (outer)		—	×	×	0.65 {0.026}
34	Rear pillar (inner)		—	—	—	0.65 {0.026}
35	Wheel house (inner)		—	—	×	0.75 {0.030}
36	Side sill reinforcement (rear)		—	×	×	1.6 {0.063}
37	Rear pillar (outer)		—	—	×	0.8 {0.03}
38	Corner plate		—	—	×	0.7 {0.03}
39	Liftgate panel (outer)		—	—	×	0.75 {0.030}
40	Wiper bracket		—	—	×	1.6 {0.063}
41	Dash upper panel		—	—	×	0.9 {0.04}
42	Roof panel		—	—	—	0.75 {0.030}
43	Front header		—	—	—	0.7 {0.03}
44	Roof reinforcement No.1		—	—	—	0.55 {0.022}
45	Roof reinforcement No.2		×	—	—	1.0 {0.039}
46	Roof reinforcement No.3		—	—	—	0.55 {0.022}
47	Roof reinforcement No.4		—	—	—	0.7 {0.03}
48	Roof reinforcement No.5		—	—	—	1.0 {0.039}
49	Rear header	Upper	—	—	—	0.7 {0.03}
		Lower	—	—	—	0.7 {0.03}
50	Front floor pan		—	—	×	0.6 {0.02}
51	Crossmember No.2		—	—	—	1.2 {0.047}
52	Front seat bracket		—	×	—	1.4 {0.055}
53	Front B frame		×	—	×	1.2 {0.047}
54	Crossmember No.4 (front)		—	—	×	1.2 {0.047}
55	Crossmember No.4 (rear)		—	—	×	0.9 {0.04}
56	Crossmember No.3		—	×	—	1.4 {0.055}
57	Center floor pan		—	—	×	0.6 {0.02}
58	Rear floor pan		—	—	×	0.65 {0.026}
59	Floor side panel		—	—	×	0.6 {0.02}
60	Rear side frame	Front	—	×	×	1.8 {0.071}
		Rear	—	×	×	1.8 {0.071}
61	Rear end panel		—	—	×	1.2 {0.047}

U.K. specs.

am6zzb00000236

NO.	Part Name		Ultra high-tension steel	High-tension steel	Rust proof steel	Thickness (mm {in})
1	Bonnet		—	×	×	0.7 {0.03}
2	Front bumper bracket		×	—	—	2.9 {0.11}
3	Shroud side panel		—	—	×	2.0 {0.079}
4	Shroud side member		—	—	×	1.2 {0.047}
5	Wheel apron (front)		—	—	×	0.65 {0.026}
6	Wheel housing (lower)		—	—	×	1.2 {0.047}
7	Wheel housing (upper)		—	×	×	2.9 {0.11}
8	Front side frame (inner)	Front	×	—	×	1.6 {0.063}
		Rear	—	×	×	2.3 {0.091}
9	Front side frame (outer)		—	×	×	1.6 {0.063}
10	Apron reinforcement (upper)		—	—	×	1.0 {0.039}
11	Apron reinforcement (lower)		—	×	×	1.2 {0.047}
12	Torque box		—	—	×	1.4 {0.055}
13	Front frame reinforcement (rear)		×	—	×	2.0 {0.079}
14	Wheel apron reinforcement (front)		—	—	×	1.4 {0.055}
15	Front fender panel		—	×	×	0.8 {0.03}
16	Front fender stay		—	—	×	1.4 {0.055}
17	Dash lower panel		—	—	×	0.85 {0.033}
18	Dash lower member		—	—	×	1.6 {0.063}
19	Front pillar reinforcement		—	—	—	1.4 {0.055}
20	Front pillar (inner)		×	—	—	1.6 {0.063}
21	Hinge pillar (inner)		×	—	×	1.2 {0.047}
22	Front pillar reinforcement (upper)		×	—	—	1.6 {0.063}
23	Hinge reinforcement		×	—	×	1.6 {0.063}
24	Cowl side reinforcement		—	×	×	1.2 {0.047}
25	Side sill reinforcement		×	—	×	1.4 {0.055}
26	Side frame (outer)		—	—	×	0.7 {0.03}
27	Side sill (inner)		×	—	×	1.6 {0.063}
28	Roof rail (inner, rear)		×	—	—	1.4 {0.055}
29	B-pillar (inner)		×	—	×	1.2 {0.047}
30	Roof rail reinforcement		×	—	—	1.6 {0.063}
31	B-pillar reinforcement	Upper	×	—	—	1.6 {0.063}
		Center	×	—	—	1.8 {0.071}
		Lower	—	×	—	1.2 {0.047}
32	Front door panel (outer)		—	×	×	0.7 {0.03}
33	Rear door panel (outer)		—	×	×	0.65 {0.026}
34	Rear pillar (inner)		—	—	—	0.65 {0.026}
35	Wheel house (inner)		—	—	×	0.75 {0.030}
36	Side sill reinforcement (rear)		—	×	×	1.6 {0.063}
37	Rear pillar (outer)		—	—	×	0.8 {0.03}
38	Corner plate		—	—	×	0.7 {0.03}
39	Liftgate panel (outer)		—	—	×	0.75 {0.030}
40	Wiper bracket		—	—	×	1.6 {0.063}
41	Dash upper panel		—	—	×	0.9 {0.04}
42	Roof panel		—	—	—	0.75 {0.030}
43	Front header		—	—	—	0.7 {0.03}
44	Roof reinforcement No.1		—	—	—	0.55 {0.022}
45	Roof reinforcement No.2		×	—	—	1.0 {0.039}
46	Roof reinforcement No.3		—	—	—	0.55 {0.022}
47	Roof reinforcement No.4		—	—	—	0.7 {0.03}
48	Roof reinforcement No.5		—	—	—	1.0 {0.039}
49	Rear header	Upper	—	—	—	0.7 {0.03}
		Lower	—	—	—	0.7 {0.03}
50	Front floor pan		—	—	×	0.6 {0.02}
51	Crossmember No.2		—	—	—	1.2 {0.047}
52	Front seat bracket		—	×	—	1.4 {0.055}
53	Front B frame		×	—	×	1.2 {0.047}
54	Crossmember No.4 (front)		—	—	×	1.2 {0.047}
55	Crossmember No.4 (rear)		—	—	×	0.9 {0.04}
56	Crossmember No.3		—	×	—	1.4 {0.055}
57	Center floor pan		—	—	×	0.6 {0.02}
58	Rear floor pan		—	—	×	0.65 {0.026}
59	Floor side panel		—	—	×	0.6 {0.02}
60	Rear side frame	Front	—	×	×	1.8 {0.071}
		Rear	—	×	×	1.8 {0.071}
61	Rear end panel		—	—	×	1.2 {0.047}
