HOUSING DISASSEMBLY I
id011000130000
1. Disassemble in the order indicated in the table.

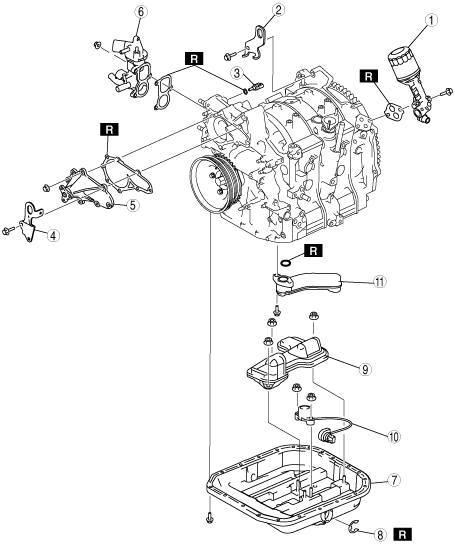

Type A
bhj0110e006
|
|
1
|
Oil filter component
|
|
2
|
Engine hanger (engine rear side)
|
|
3
|
Engine coolant temperature sensor
|
|
4
|
Engine hanger (engine front side)
|
|
5
|
Water pump body
|
|
6
|
Thermostat component
|
|
7
|
Oil pan
(See Oil Pan Disassembly Note.)
|
|
8
|
Clip
|
|
9
|
Oil baffle plate
|
|
10
|
Oil-level sensor
|
|
11
|
Oil strainer
|
Type B
bhj0110f002
|
|
1
|
Engine hanger (engine rear side)
|
|
2
|
Engine coolant temperature sensor
|
|
3
|
Engine hanger (engine front side)
|
|
4
|
Water pump body
|
|
5
|
Thermostat component
|
|
6
|
Oil pan
(See Oil Pan Disassembly Note.)
|
|
7
|
Oil pan upper block
|
|
8
|
Baffle plate
|
|
9
|
Clip
|
|
10
|
Oil level switch
|
|
11
|
Baffle plate
|
|
12
|
Oil strainer
|
Oil Pan Disassembly Note
1. Remove the oil pan using the separator tool.
bhj0111e014
|
Oil Pan Upper Block Disassembly Note
1. Remove the oil pan upper block using the separator tool.
bhj0111e014
|
