HOUSING DISASSEMBLY III

id011000131000

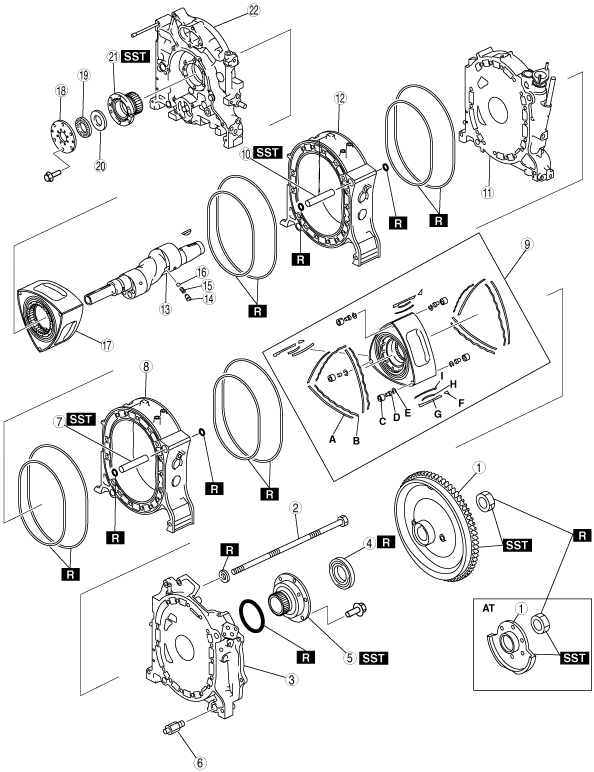

1.  Disassemble in the order indicated in the table.

bhj0110e010

1	Flywheel (MT), counterweight (AT) (See Flywheel (MT), Counterweight (AT) Disassembly Note.)
2	Tension bolt (See Tension Bolt Disassembly Note.)
3	Rear housing (See Rear Housing Disassembly Note.)
4	Rear oil seal
5	Rear stationary gear (See Stationary Gear Disassembly Note.)
6	Pressure regulator (Type A)
7	Tubular dowel (rear rotor housing side) (See Tubular Dowel Disassembly Note.)
8	Rear rotor housing (See Rotor Housing Disassembly Note.)
9	Rear rotor A: Side seal B: Side seal spring C: Corner seal D: Corner seal plug E: Corner Seal Spring F: Side piece G: Apex seal H: Apex seal spring (short) I: Apex seal spring (long) (See Rotor Disassembly Note.)
10	Tubular dowel (front rotor housing side) (See Tubular Dowel Disassembly Note.)
11	Intermediate housing (See Intermediate Housing Disassembly Note.)
12	Front rotor housing (See Rotor Housing Disassembly Note.)
13	Eccentric shaft
14	Oil jet plug
15	Spring
16	Steel ball
17	Front rotor (See Rotor Disassembly Note.)
18	Plate
19	Needle bearing
20	Thrust plate
21	Front stationary gear (See Stationary Gear Disassembly Note.)
22	Front housing

Flywheel (MT), Counterweight (AT) Disassembly Note

1.  Lock the flywheel (MT) or counterweight (AT) against rotation using the SST.

bhj0110e007

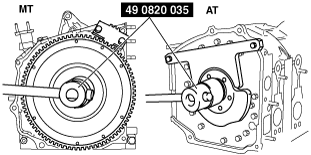

2.  Remove the locknut using the SST.

bhj0110e011

3.  Remove the flywheel (MT) or counterweight (AT), using the SST.

bhj0110e012

Tension Bolt Disassembly Note

1.  Loosen the tension bolts in 2—3 passes in the order shown in the figure and remove them.

bhj0110e013

Rear Housing Disassembly Note

1.  Move the rear housing to the left and right to cut the oil film.

2.  Remove the rear housing.

chu0110e039

Caution

•  If a seal adheres to the rear housing, put it back in its original position in the rotor.

Stationary Gear Disassembly Note

1.  Remove the stationary gear using the SST.

bhj0110e016

Tubular Dowel Disassembly Note

1.  Remove the tubular dowel using the SST.

bhj0110e017

Rotor Housing Disassembly Note

1.  Remove the rotor housing being careful not to drop the apex seal.

bhj0110e020

Rotor Disassembly Note

Note

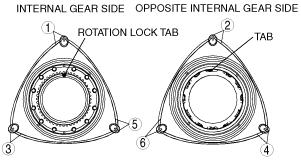

•  Pair each seal and spring according to the numbers shown in the figure, and place them in the SST according to the numbers shown on the SST.

chu0110e056

1.  Remove the side piece, apex seal, corner seal, side seal, and spring on the engine rear side, and place them in the SST while keeping them in order.

bhj0110e019

2.  Move the rotor to the left and right to cut the oil film.

bhj0110e021

3.  Remove the rotor.

Caution

•  If a seal adheres to the side housing, put it back in its original position in the rotor.

•  Place the removed rotor upright on soft material such as a rubber sheet or cloth. Do not allow the oil seal to directly contact metal are similar hard surface.

4.  Remove the corner seal, side seal, and spring on the engine front side, and place them in the SST while keeping them in order.

bhj0110e022

Intermediate Housing Disassembly Note

1.  Lift the intermediate housing up while another person pushes the eccentric shaft upward approx. 3 cm {1.18 in}.

bhj0110e023

2.  Rotate and remove the intermediate housing at the point where the eccentric shaft does not catch.

Caution

•  If a seal adheres to the intermediate housing, put it back in its original position in the rotor.
