CUT-OFF SEAL INSPECTION

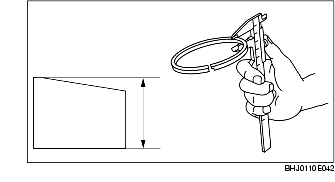

1. Measure the cut-off seal height using a vernier caliper.

• If it is less than the minimum specification, replace the cut-off seal.

Caution

• Measure the cut-off seal height around the complete perimeter.

Standard height

3.95 mm {0.1555 in}

Minimum height

3.8 mm {0.15 in}
