ENGINE SPECIFICATIONS [13B-MSP]
id010000113350
Specification
|
Item |
Specification |
|||||
|---|---|---|---|---|---|---|
|
13B-MSP (Standard power) |
13B-MSP (High power) |
|||||
|
MECHANICAL
|
||||||
|
Engine type
|
Rotary
|
|||||
|
Rotor arrangement and number
|
In-line 2-rotor, longitudinal
|
|||||
|
Combustion chamber type
|
Bathtub
|
|||||
|
Displacement
|
(ml {cc, cu in})
|
654 {654, 40.0}×2
|
||||
|
Compression ratio
|
10.0
|
|||||
|
Compression pressure
|
(kPa {kgf/cm2, psi}[rpm])
|
830 {8.5, 120}[250]
|
||||
|
Port timing
|
IN
|
Open
|
Primary port
|
ATDC
|
3°
|
|
|
Secondary port
|
12°
|
|||||
|
Auxiliary port
|
38°
|
|||||
|
Close
|
Primary port
|
ABDC
|
65°
|
|||
|
Secondary port
|
36°
|
|||||
|
Auxiliary port
|
80°
|
|||||
|
EX
|
Open
|
BBDC
|
50°
|
|||
|
Close
|
BTDC
|
3°
|
||||
|
LUBRICATION SYSTEM
|
||||||
|
Type
|
Force-fed type
|
|||||
|
Oil pressure (reference value)
[oil temperature: 100°C {212°F}]
|
(kPa {kgf/cm2, psi} [rpm])
|
500 {5.10, 72.5}[3,000]
|
||||
|
Oil pump
|
Type
|
Trochoid gear type
|
||||
|
Relief valve opening pressure
(reference value)
|
(kPa {kgf/cm2, psi})
|
1,080 {11.01, 156.6}
|
||||
|
Oil filter
|
Type
|
Full-flow, paper element
|
||||
|
Bypass pressure
|
(kPa {kgf/cm2, psi})
|
140—180
{1.43—1.83, 20.3—26.1}
|
||||
|
Oil capacity
(approx. quantity)
|
Oil replacement
|
(L {US qt, lmp qt})
|
4.2 {4.4, 3.7}
|
|||
|
Oil and oil filter replacement
|
(L {US qt, lmp qt})
|
4.4 {4.6, 3.9}
|
||||
|
Engine overhaul
|
(L {US qt, lmp qt})
|
5.6 {5.9, 4.9}
|
||||
|
Total (dry engine)
|
(L {US qt, lmp qt})
|
AT: 6.3 {6.7, 5.5}
MT: 7.0 {7.4, 6.2}
|
||||
|
COOLING SYSTEM
|
||||||
|
Type
|
Water-cooled, forced circulation
|
|||||
|
Coolant capacity (approx. quantity)
|
(L {US qt, lmp qt})
|
AT: 9.8 {10, 8.6}
MT: 10.0 {10.6, 8.80}
|
||||
|
Water pump
|
Type
|
Centrifugal, V-ribbed belt-driven
|
||||
|
Thermostat
|
Type
|
Wax
|
||||
|
Opening temperature
|
(°C {F°})
|
80—84 {176—183}
|
||||
|
Full-open temperature
|
(°C {F°})
|
95 {203}
|
||||
|
Full-open lift
|
(mm {in})
|
8.5 {0.33} or more
|
||||
|
Radiator
|
Type
|
Corrugated fin
|
||||
|
Cooling system cap
|
Cap valve opening pressure
|
(kPa {kgf/cm2, psi})
|
73.6—103 {0.75—1.05, 10.7—14.9}
|
|||
|
Cooling fan
|
Type
|
Electric
|
||||
|
Number of blades
|
Cooling fan No.1: 5
Cooling fan No.2: 7
|
|||||
|
Outer diameter
|
(mm {in})
|
300 {11.8}
|
||||
|
Fan motor output
|
(W)
|
120
|
||||
|
FUEL SYSTEM
|
||||||
|
Fuel Injector
|
Type
|
Multiple hole type
|
||||
|
Type of fuel delivery
|
Top-feed
|
|||||
|
Type of drive
|
Electronic
|
|||||
|
Pressure regulator control pressure
|
(kPa {kgf/cm2, psi})
|
Approx. 390 {3.98, 56.6}
|
||||
|
Fuel pump type
|
Electric
|
|||||
|
Fuel tank capacity (approx. quantity)
|
(L {US gal, lmp gal})
|
65 {17.2, 14.3}
|
||||
|
EMISSION SYSTEM
|
||||||
|
AIR system
|
AIR pump, AIR control valve
|
|||||
|
Catalyst type
|
TWC (monolith)
|
|||||
|
EVAP control system
|
Canister type
|
|||||
|
PCV system
|
Closed type
|
|||||
|
CHARGING SYSTEM
|
||||||
|
Battery
|
Voltage
|
(V)
|
12
|
|||
|
Type and capacity
|
(A·h/5HR, A·h/20HR)
|
80D26L (55, 65)
|
||||
|
Generator
|
Output
|
(V–A)
|
12—110
|
|||
|
Regulated voltage
|
Controlled by PCM
|
|||||
|
Self diagnosis function
|
||||||
|
IGNITION SYSTEM
|
||||||
|
Ignition system
|
Type
|
Distributorless Ignition (DLI)
|
||||
|
Spark advance
|
Electronic
|
|||||
|
Firing order
|
When idling:
T/F-L/F-T/R-L/R
Except for idling:
L/F-T/F-L/R-T/R
(Independent ignition control)
|
|||||
|
STARTING SYSTEM
|
||||||
|
Starter
|
Type
|
Coaxial reduction
|
||||
|
Output
|
(kW)
|
2.0
|
||||
|
CRUISE CONTROL SYSTEM
|
||||||
|
Cruise control switch
|
ON/OFF
|
|||||
|
CONTROL SYSTEM
|
||||||
|
Neutral switch (MT)
|
ON/OFF
|
|||||
|
CPP switch (MT)
|
ON/OFF
|
|||||
|
Cruise control switch (Vehicles equipped with cruise control switch)
|
ON/OFF
|
|||||
|
APV position sensor
|
Hall element
|
|||||
|
ECT sensor
|
Thermistor
|
|||||
|
IAT sensor
|
Thermistor
|
|||||
|
TP sensor
|
Hall element
|
|||||
|
APP sensor
|
Hall element
|
|||||
|
MAF sensor
|
Hot-wire
|
|||||
|
A/F sensor
|
Zirconia element (Wide-range air/fuel ratio sensor)
|
|||||
|
HO2S
|
Zirconia element (Stoichiometric air/fuel ratio sensor)
|
|||||
|
KS No.1, No.2
|
Piezoelectric element
|
|||||
|
Eccentric shaft position sensor
|
Magnetic pickup
|
|||||
|
Oil pressure sensor
|
Piezoelectric element
|
|||||
|
BARO sensor (built into PCM)
|
Piezoelectric element
|
|||||
|
PCM temperature sensor (built into PCM)
|
Thermistor
|
|||||
Engine oil specification
|
Item |
Market |
||||
|---|---|---|---|---|---|
|
Europe |
Australia |
Except Europe and Australia |
|||
|
Grade
|
API SG, SH, SJ, SL
ACEA A1, A3, or A5
|
API SM
|
API SG, SH, SJ, SL
|
API SG, SH, SJ, SL, SM
ILSAC GF–2, GF–3, GF–4
|
API SG, SH, SJ, SL
ILSAC GF–2, GF–3
|
|
Viscosity (SAE)
|
5W–30
|
0W–20
|
10W–30
|
40, 30, 20, 20W–20, 10W–30, 10W–40,
10W–50, 20W–40, 15W–40, 20W–50,
15W–50, 5W–20, 5W–30, 5W–40
|
40, 30, 20, 20W–20, 10W–30, 10W–40,
10W–50, 20W–40, 15W–40, 20W–50,
15W–50, 5W–20, 5W–30
|
|
Remarks
|
Mazda genuine Dexelia oil e.g.
|
—
|
—
|
—
|
|
Fuel type
|
Fuel |
Research octane number |
|---|---|
|
Premium unleaded fuel (Conforming to EN 228*1) (Conforming to Fuel Quality Standards Act 2000*2)
|
95 or above
|
Spark plug type
|
Destination |
Item |
Specification |
|---|---|---|
|
Europe, Russia
|
Trailing side
|
N3H8 18 110 B (RE9B-T)*1
N3Y4 18 110 A (RE9B-T)*1
|
|
Leading side
|
N3J1 18 110 A (RE8C-L)*1
N3Z1 18 110 A (RE8C-L)*1
N3Z2 18 110 A (RE7C-L)*2
|
|
|
Except above
|
Trailing side
|
N3H1 18 110 D (RE9B-T)*1
N3Y1 18 110 A (RE9B-T)*1
|
|
Leading side
|
N3H5 18 110 A (RE7C-L)*1
N3Y8 18 110 A (RE7C-L)*1
N3Y9 18 110 A (RE6C-L)*2
|

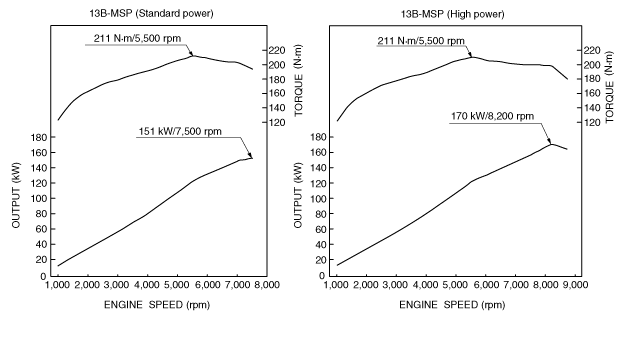

Engine Performance Curve
European (L.H.D. U.K.) specs.
