FOREWORD [13B-MSP]

id0103f2800300

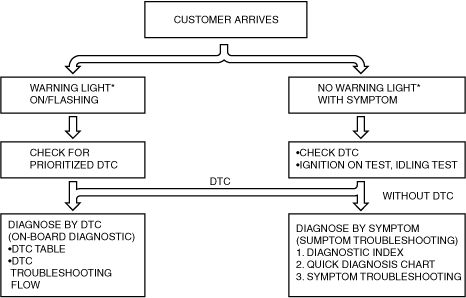

• When the customer reports a vehicle malfunction, check the malfunction indicator lamp (MIL) indication and diagnostic trouble code (DTC), then diagnose the malfunction according to the following flowchart:

― If a DTC exists, diagnose the applicable DTC inspection. (See DTC TABLE [13B-MSP].)

― If no DTC exists and the MIL does not illuminate or flash, diagnose the applicable symptom troubleshooting. (See QUICK DIAGNOSTIC CHART [13B-MSP].)

ar8uuw00002184

*: Malfunction Indicator Lamp (MIL), Generator Warning Light, Security Light
