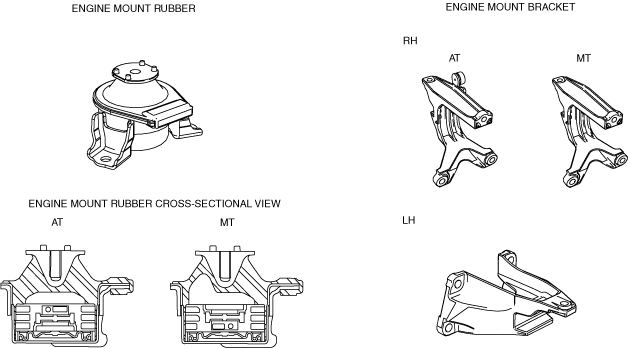

ENGINE MOUNT STRUCTURAL VIEW [13B-MSP]


id011070103300

•  The engine mount rubber is filled with oil for reduced engine vibration.
•  An aluminum engine mount bracket has been adopted for weight reduction.
