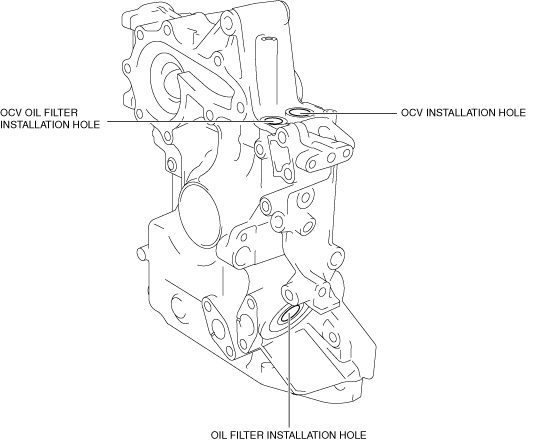

ENGINE FRONT COVER CONSTRUCTION [13B-MSP]


id011070119100

•  An aluminum engine front cover has been adopted for weight reduction.
•  There are installation holes for the oil control valve (OCV), OCV oil filter, and oil filter on the engine front cover.
•  The oil filter is assembled to the engine front cover for improved serviceability.
ar8uun00000173
