ROTOR HOUSING CONSTRUCTION [13B-MSP]


id011070659600

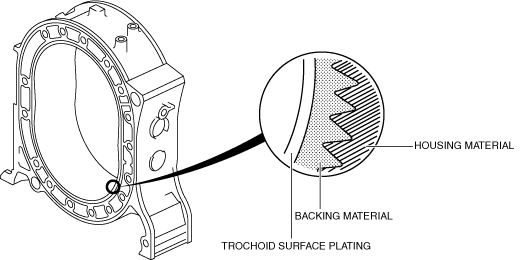

•  An aluminum rotor housing has been adopted for weight reduction.
•  A trochoid-shaped steel plate is cast into the rotor housing to improve the strength.
•  Fine grooves have been made on the trochoid surface by applying MCP (Micro Channel Porous) coating, improving oil retention capacity.
