TENSION BOLT CONSTRUCTION [13B-MSP]


id011070659700

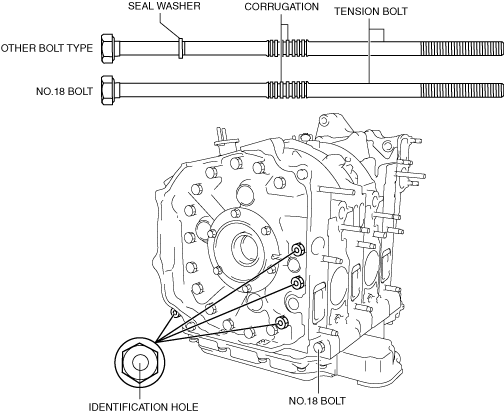

•  The tension bolts, pointed from the rear to the front housing, are tightened to fix the housings.
•  Corrugation at the center of the tension bolts prevents resonance.
•  There are two types of tension bolt lengths, with the longer bolts having a hole in the bolt head for differentiating between the two types of lengths.
•  Seal washers have been used to improve the sealing and prevent oil leakage. The No.18 bolt does not have a seal washer.
ar8wzn00000472
