ECCENTRIC SHAFT CONSTRUCTION [13B-MSP]


id011070659900

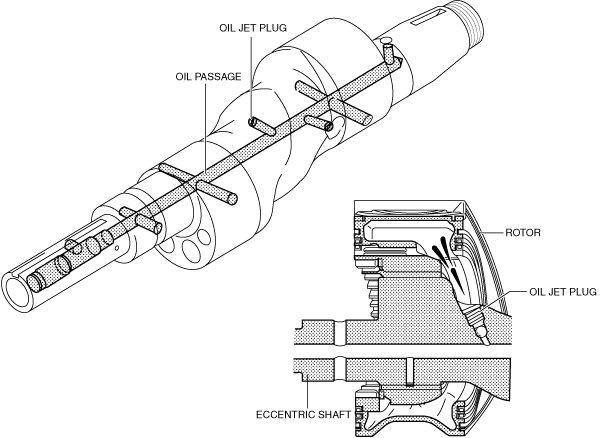

•  The highly durable, forged carbon steel eccentric shaft is processed with induction hardening for improved wear resistance.
•  The oil passage supplying lubrication for each journal and the rotor cooling oil jet plugs, runs from the front end of the eccentric shaft to the rear main journal.
•  The rotor cooling oil jet plugs inject oil into the rotor interior.
